Definitive Roof Box Fitment Thread

[Hostile]

As someone who is looking at roof boxes it can be hard to find pictures of specific boxes and fitment.

For example, Thule doesn't include a fitment in their configurator specifically for the SQ5 but they have the Q5 and have confirmed the fitment is identical. I mean, of course we know the roofs are identical but having Thule officially confirm it does help with warranty or fit issues.

I asked about fitment for my 2021 SQ5:

Hello Iain,

Thank you for contacting Thule. After confirming with a colleague, we have verified that the SQ5 and Q5 are the same vehicle fitment. Since you have crossbars already, you can use the factory installed bars in order to mount your box. Please use the attached document to measure if the XXL box will work for you.

Thanks,

Kris
Thule Group

Anyway, I thought it would be helpful we had a single thread where people can post what roof boxes they have and how they are attached (OE or aftermarket crossbars). If people could include the following 3 items it would be helpful:

- Roof box Make and Model
- Crossbar Make & Model
- Pic of roof box installed

Thanks!

Year/Model	Roof Box	Cross Bars	Foot Pack	Fit Kit	User
2021 SQ5	Thule Vector M	Thule Aeroblade 7603B	n/a	184078	ADG05
2020 SQ5	Thule Vector Alpine	Thule Wingbar Evo 127 (711320)	Thule Flush Rail Evo (710601)	186045	hbnoodles
2019 SQ5	Thule 612 Hyper XL	Audi Base Carrier Bars	n/a	n/a	1RAudiSQ5
2020 SQ5	Inno Wedge 660	Thule Aeroblade 7603B	n/a	184078	jpanimator
2018 SQ5	Thule Force XT Sport	Audi Base Carrier Bars	n/a	n/a	Tyler230
2021 SQ5	Thule Motion XT XL	Audi Base Carrier Bars	n/a	n/a	Hostile
2021 SQ5	Audi Cargo Carrier 360L	Audi Base Carrier Bars	n/a	n/a	Dogger7
2020 SQ5	Thule Force XT L	Audi Base Carrier Bars	n/a	n/a	Jose_Escobedo
2023 SQ5	Thule Motion 3 XL Low	Audi Base Carrier Bars	n/a	n/a	youtube
n/a	n/a	n/a	n/a	n/a	n/a

Google Sheet - https://docs.google.com/spreadsheets...it?usp=sharing

EDIT: Permissions on the link are fixed so anyone can view it.

Updated: 5/29/2024

[ADG05]

Thule Vector M
Thule Aeroblade 7603B

I haven't shot too many pics to show the fitment but will try to get something up soon.

[Mops@Nemesis]

I believe @Jimminez@Nemesis runs the Vector with Aeroblades on his Q7. He also sells Thule goods. 👍🏼

[Hostile]

Nice!

The problem with the roof boxes is, at least with the larger ones, is that they are freight shipped. No one around here carries the Motion XT XXL and that’s another $100+ in shipping fees. Some do carry the XT XL and I we’re going to go with that one.

I was originally going to go with the XXL but even the freight aside I think it will look too goofy on the S/Q5 because it will overhang the windshield by almost a foot.

[hbnoodles]

Thule Vector Alpine Box

Below are the part numbers for my ‘20 SQ5 that’d you’d need to buy to fit the wing bar evo onto factory flush bars.
Thule Wingbar Evo 127 | 711320
Thule Flush Rail Evo | 710601
Kit 186045

I have one side shot on the gram, fit is solid though. Pretty minimal noise and definitely the sleekest look.

[1RAudiSQ5]

thule 612 hyper xl
Factory roof crossbars



Sent from my iPhone using Audizine Forum

[jpanimator]

Thule aeroblades
Inno wedge 660


Sent from my iPhone using Audizine Forum

[ADG05]


Thule Vector Alpine
Thule Aeroblade 7603B


Sent from my iPhone using Audizine

[Hostile]

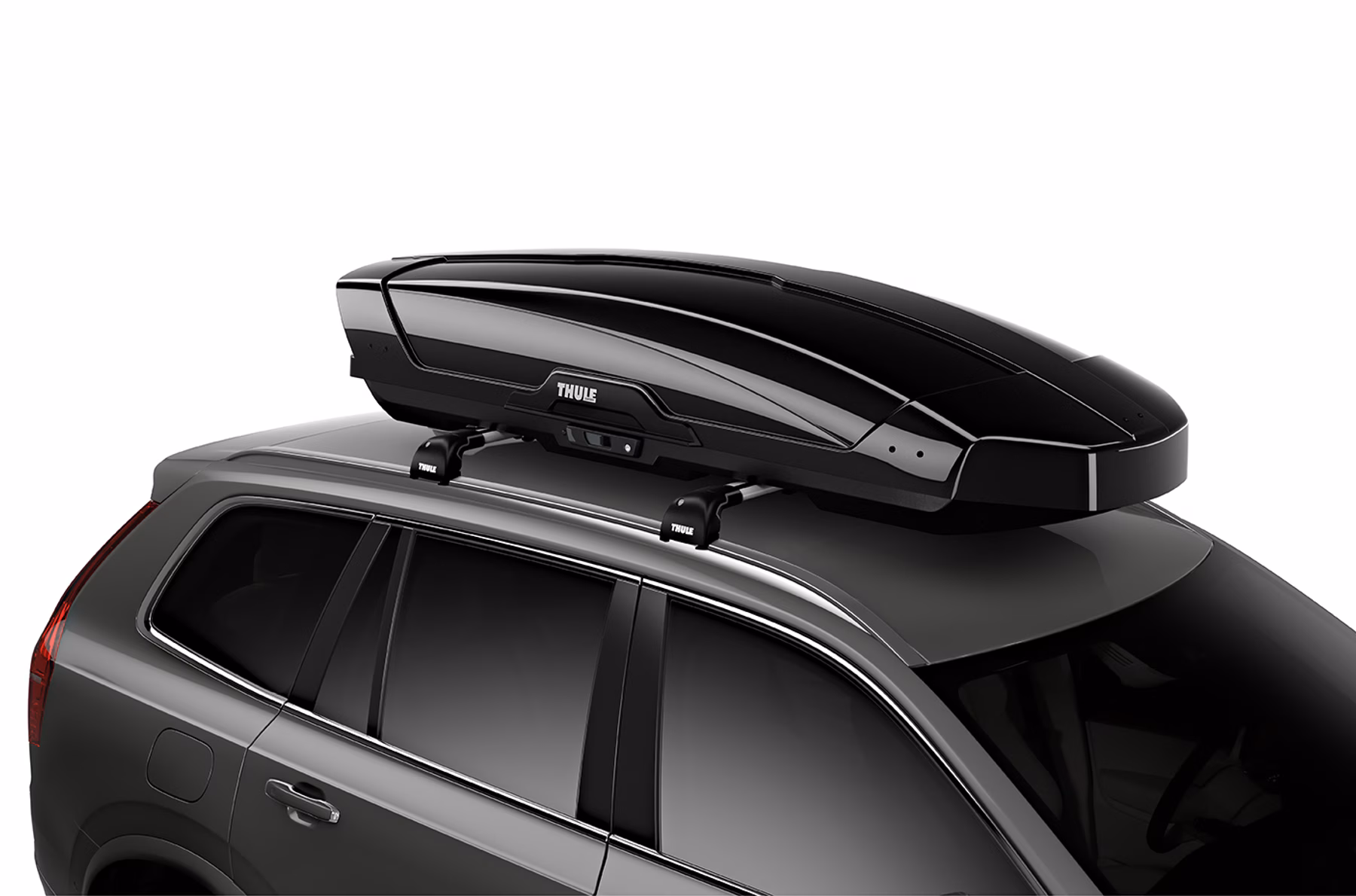

I just ordered a Thule Motion XL XT and I'll be using it with the OE crossbars.

I ordered from etrailers.com. Shipping is the killer when ordering these online and they sell for MSRP and do free freight shipping and it'll be here in a few weeks. My wife also found a 5% off coupon online which took care of almost all the sales tax.



Thule says it fits but I'll update this post and add myself to the OP when it comes in and I confirm.

[saejin99]

REi has both the Inno Wedge 660, Vector Alpine and Vector M in stock right now...ship to store for free.

Anyway, I see three owners here each having one. I know the Vector M is short, but not my much, and taller, again not by much. However, the Alpine is low profile and both look amazing. They both can fit my skis. I'm just concerned the Alpine with it being longer will overhang the windshield a bit more and be an issue. I haven't much info on the inno.

Love to get the thoughts from all owners here as well; hbnoodles with the Alpine and ADG05 with the M and jpanimator with the inno wedge.

Thanks.

[Tyler230]

Thule Force XT Sport
OEM cross bars


Sent from my iPhone using Audizine Forum

[ADG05]

REi has both the Inno Wedge 660, Vector Alpine and Vector M in stock right now...ship to store for free.

Anyway, I see three owners here each having one. I know the Vector M is short, but not my much, and taller, again not by much. However, the Alpine is low profile and both look amazing. They both can fit my skis. I'm just concerned the Alpine with it being longer will overhang the windshield a bit more and be an issue. I haven't much info on the inno.

Love to get the thoughts from all owners here as well; hbnoodles with the Alpine and ADG05 with the M and jpanimator with the inno wedge.

Thanks.

IMO the vector is the perfect size and follows the roof line perfect. The alpine is nice because it’s a bit longer but there will be a bit more overhang on the windshield. The M in its current set up allows for full hatch opening and I still have my headlights turn on and off during the day because it’s covering the sensor. Here is a profile shot so you can see front to back a bit better



Sent from my iPhone using Audizine

[saejin99]

IMO the vector is the perfect size and follows the roof line perfect. The alpine is nice because it’s a bit longer but there will be a bit more overhang on the windshield. The M in its current set up allows for full hatch opening and I still have my headlights turn on and off during the day because it’s covering the sensor. Here is a profile shot so you can see front to back a bit better



Sent from my iPhone using Audizine

Thanks for the feedback. So when you say you have to turn on and off the headlights do you mean you can't leave the switch on Auto and must activate them manually?

Also, how's the wind noise and MPG hit if any?

Do you leave the Vector on all year or just use/install as needed for trips and such? I was thinking of leaving it on all year long, but it would cover the sunroof which I also leave the shade open all year since I got it tinted.

[hbnoodles]

Here are two shots of the alpine. Definitely is a bit longer, but I like the slightly lower profile. Overall though, the M looks great too I don't think you can really go wrong.

I definitely took a little hit in MPG but nothing wild from what I was previously averaging. I also just drove about 1800 miles with the roof box on and the wind noise is minimal and nothing you can't get over with a little volume bump too.

Also - I do have full hatch opening ability. I honestly can't tell a difference though between my pictures and ADG05s...price is only $100 difference and I'd say go with whatever dimensions work best for what you need. Both look dope, good luck finding one though lol they're sold out everywhere.


[Hostile]

The Thule Motion XT XL arrived yesterday and with the OE crossbar placement it interferes with the rear hatch opening and I’m going to have to set the height adjustment. Good thing the wife and I are both are under 5’7”.

2021 SQ5
Audi OE Crossbars
Thule Motion XT XL (18cu)

[Dogger7]

Will get a picture in a day or two

OEM bars
OEM Cargo Carrier - Black - Small - Capacity 360L

[383vett]

The Thule Motion XT XL arrived yesterday and with the OE crossbar placement it interferes with the rear hatch opening and I’m going to have to set the height adjustment. Good thing the wife and I are both are under 5’7”.

2021 SQ5
Audi OE Crossbars
Thule Motion XT XL (18cu)

Any way to move it forward a couple inches?

[Hostile]

Any way to move it forward a couple inches?

Unfortunately no, it's as far forward as the box will go due to Audi's placement of the front crossbar. It's not like we have to duck under the lift gate but I wish Thule had mentioned that the rear gate would have to be set to a lower height.

[Hostile]

Will get a picture in a day or two

OEM bars
OEM Cargo Carrier - Black - Small - Capacity 360L

Is it an older box? I only see 250L, 310L and 430L on the Audi website.
https://www.partscolumbusaudi.com/ac...tachments.html

[Dogger7]

Is it an older box? I only see 250L, 310L and 430L on the Audi website.
https://www.partscolumbusaudi.com/ac...tachments.html

It was last year's model apparently which appears to be replaced with a smaller capacity model. Picked up on 8/7/21 from the local dealer here.

Part Number Part Name Price Quantity Total
8X0-071-200-Y9B Cargo Carrier - Black - Small - Capacity 360L $805.00 1 $805.00

https://parts.audiusa.com/p/Audi__/C...071200Y9B.html

[Jose_Escobedo]

I have a Thule box on oem racks and also fits my Yakima bike carrier. Box does fit with my bike on top




Sent from my iPhone using Tapatalk

[Hostile]

Post the model of the box and I’ll add you to the OP.

[Jose_Escobedo]

I’m on duty tonight I’ll do it when I get home in the morning


Sent from my iPhone using Tapatalk

[Jose_Escobedo]

It’s this one


Sent from my iPhone using Tapatalk

[Hostile]

That box comes in 4 sizes, do you know which one? Sport, L, XL or XXL?

[Jose_Escobedo]

That box comes in 4 sizes, do you know which one? Sport, L, XL or XXL?

I wanna say the sport or the L. The xl and xxl didn’t fit it. I just got it the other day for my road trip back home when I retire.


Sent from my iPhone using Tapatalk

[Jose_Escobedo]

It’s The L. I just checked my purchase history on REI


Sent from my iPhone using Tapatalk

[JMURiz]

Cool you can have the L-sized box and bike up top

[Hostile]

Some updated pics of the Thule Motion XT XL.

[daleclough]

@hostile, still loving the xl size? Any regrets?

[Hostile]

No regrets, it holds a lot of stuff.

I am still glad I didn’t get the XXL, it would have looked goofy.

[kennysexypants]

Some updated pics of the Thule Motion XT XL.

How badly did it interfere with the hatch? I am on the lookout for a cargo box for car shows. I carry a lot of marketing materials and a big 20x10 tent with me, and two folding tables, so I could use space for extra stuff up top. Any photos anyone can share with how spacious the box is and how much you can fit?

Thanks!


Sent from my iPhone using Audizine Forum

[Hostile]

How badly did it interfere with the hatch? I am on the lookout for a cargo box for car shows. I carry a lot of marketing materials and a big 20x10 tent with me, and two folding tables, so I could use space for extra stuff up top. Any photos anyone can share with how spacious the box is and how much you can fit?

Thanks!


Sent from my iPhone using Audizine Forum

Not too much. I did have to limit the open height a little but I’m only 5’ 6” so it’s not a big deal. I can stand under the open hatch just fine but I do have to watch out for the corners. It took me hitting my head twice to learn my lesson.

We put the dog’s stuff in there when we travel plus any of my crap like RC car and/or range stuff.

I don’t have any pictures of it loaded but I’ll try to remember to get you a few to give you an idea.

[jfive]

Just confirming, the Thule Force XT L fits and no problems with hatch?

[Hostile]

Just confirming, the Thule Force XT L fits and no problems with hatch?

I guess it depends if possibly having to limit the hatch height a little a problem.

You’ll have to check with Jose_Escobedo if he had to limit the hatch height.

[jfive]

I'd rather not have to modify the hatch height. How do you do that out of curiosity?

[Hostile]

I'd rather not have to modify the hatch height. How do you do that out of curiosity?

Why? The car is designed to do it. It’s for short people so they can reach the buttons when the hatch is open.

It’s a combination of the buttons in the lift gate. I don’t remember off-hand but it’s in your owner’s manual.

[ontunerow]

Some updated pics of the Thule Motion XT XL.

Do you have a pic how it looks when the hatch is open? Curious by how much you had to readjust it.

Sent from my IN2015 using Audizine Forum mobile app

[scottyuk]

Why? The car is designed to do it. It’s for short people so they can reach the buttons when the hatch is open.

It’s a combination of the buttons in the lift gate. I don’t remember off-hand but it’s in your owner’s manual.

I always thought it was programmable due to low heights in garages, car parks etc but short people too I guess.

Once at the required height just press and hold the button on the tail gate until you hear the sound/lights flash. To set full open just push it up as far as it goes and press the button as above.

[jfive]

I said I rather not do it because I didn't know it was that easy to do so.. laziness I guess. I am 6' 1" btw. Thanks for the info.

Anyways, I picked up the Thule Force XT Large last night. It looks and fits great, no need to adjust the hatch at all. Pics below. I am lowered on ABT HAS.
