RS3 8V Sedan Manufacturer (and member) Confirmed Wheel Fitments

[Paul@SupremePower]

Because the RS3 holds a special place in my heart, I wanted to try and take some of the frustration out of choosing wheels that fit due to the large caliper and small MQB architecture combo.

What I've decided to do is use Post #1 and Post #2 for manufacturer confirmed wheel fitments without spacers and in what specs for the 8V RS3 Sedan. Meaning, I have contacted the manufacturer and we have confirmed by either test fitting or via craft expertise that those options will work.

I'm going to use Post #3 to list manufacturer confirmed fitment with spacers with the suggested spacer width. I will also use Post #3 for Custom wheels. Additionally, I’d like to do a section with Audi OEM fitments but that may have to be member confirmed only because Audi tends to not go on the record for "off-label" use of anything (End of Post #3).

This is not an all inclusive list of manufacturers but I will do my best to keep adding fits. I'm always waiting on other vendors to reply so I will be updating it as often as I can so check back for the most current info.

If any one has any requests for confirmed fitment, post the manufacturer name, wheel line, diameter, width and offset. Ill do my best to confirm it and update it into the appropriate Post.

If anyone wants quotes on anything please email me [email protected] instead of posting so we can keep the thread concise.

Note: Post #1, #2 and #3 info is meant to be used as a guide for the wheels under lowering of about 1” at factory camber.


This info shouldn’t change but anything is possible so please make sure you make a final confirmation with the manufacturer if you place an order elsewhere.


*** Tire brand can effect the functional size and could effect the final mounted fit and look on the car. If a manufacturer supplied a recommended tire size I included it but other sizes may be possible depending on your willingness to do post mounting adjustments ***


*** Ride height effects clearance/rub ***


***Most of the wheel pictures are stock photos and are only to show the wheel style. They may not represent the confirmed specs in profile concavity***


***Spec’s listed clear STEEL ONLY unless otherwise noted as also clearing CCB***


Summary:

Post #1 & #2
-Confirmed fitment without spacers

Post #3
-Confirmed fitment with spacers
-Custom fitments
-Member confirmed OEM fitments



Confirmed options so far without using spacers:

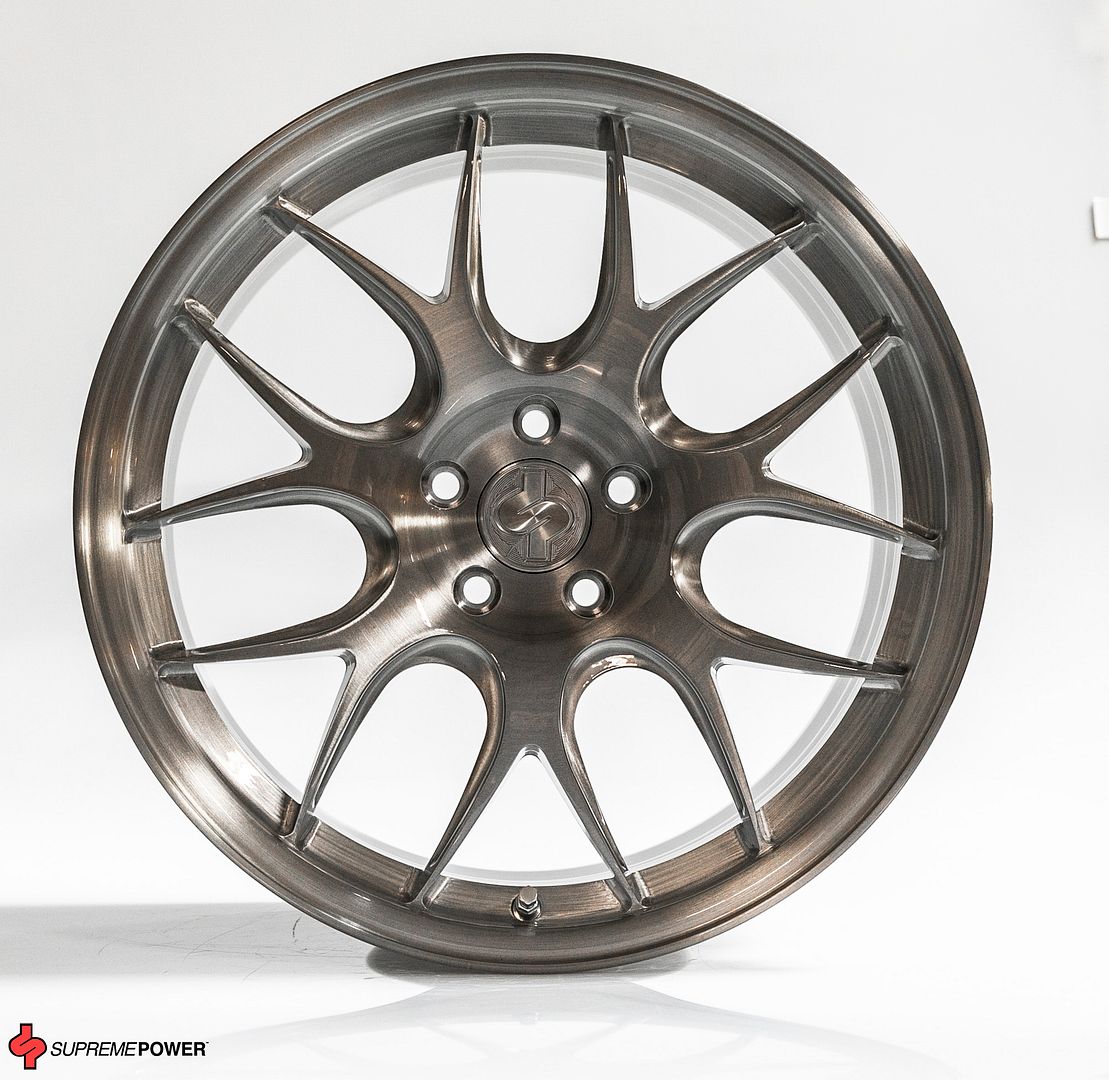

SUPREME FORGED





19x9.5 +45
Forged
Steel and CCB
Fully customizable in 18” to 20”



ALTI









GT1
19x9.5 +45
Forged



BBS



RSGT
RS 958
19x8.5 +32 with 235/35-19
Forged




CC-R 2302
19x9.5 +42 *slightly aggressive fitment for rear*
Clears steel and CCB


RF 527
18x8.5 +38
19.1 lbs
Forged
Clears steel brakes only



LMR 322
19x8.5 +38
Forged
Clears steel & CCB



LM 273
20x8.5 +38
Forged



CH-R
19x9.5 +45
And
20x8.5 +40
Clears steel brakes only



CH-R Nurburgring Edition
19x9.5 +45



FS
19x9.5 +45
And
19x8.5 +42
Forged
Clears steel and CCB




CI-R 2201
19x9 +42
Clears steel and CCB
(Silver lip protector is removable)




CI-R Nurburgring Edition
19x9 +42 Square
Clears steel and CCB



XA 0202
18x8.5 +35
Clears steel brakes only



RI-A 016
18x9 +38
18.2 lbs
Forged
Clears steel brakes only

RI-A 047
18x8.5 +35
18.0 lbs
Forged
Clears steel only


VORSTEINER



VFF 102
20x9 +35 aggressive fitment


VFF 103
20x9 +35 aggressive fitment



VFF 105
19x9 +40
245/35 max


VFF 107
20x9 +35 aggressive fitment
245/30 max


VFF 108
19x9 +40

VMR



V801
19x8.5 +35
245/35 max
Also good with CCB


V804
19x8.5 +35
245/35 max


V710
19x8.5 +35
245/35 max
Also good with CCB


NEUSPEED



RSe05

19x8.5 +45
19x9 +45
19x9 +40
19x9.5 +45



RSf72

Forged
19x9 +45
19x9.5 +45
Above clears with steel and CCB


RSe06

18X8.5 +45 with 235 or 245 tires (center mount outer balance weight)
18X9 +40 with 245 or 255 (narrow)
18x9 +45 with 255 or 265 tires
18X9.5 +45 with 255 max. Rear DOT fender tab may need removal
Above clears steel & CCB




RSe11R

18X8.5 +45 with 235 or 245 tires (center mount outer balance weight)
18X9 +40 with 245 or 255 (narrow)
18x9 +45 with 255 or 265 tires
18X9.5 +45 with 255 max. Rear DOT fender tab may need removal
Above clears steel & CCB


RSe142
19X8.5 +45
19X9 +40
19x9 +45
19X9.5 +45 with 255 max. Rear DOT fender tab may need removal
Above clears steel & CCB


RSe122
18X8 +45 REAR ONLY
18X8.5 +45 with 235 or 245 tires (center mount outer balance weight)
18X9 +40 with 245 or 255 (narrow)
18x9 +45 with 255 or 265 tires
18X9.5 +45 with 255 max. Rear DOT fender tab may need removal
Above clears steel & CCB


RSe 102
19x9 +40
19x9 +45
19x8.5 +45
19x8 +45 REAR ONLY
20X9 +40 with 245/30 (BARELY CLEARS CALIPER - 3mm SPACER IS HIGHLY RECOMMENDED)
Above clears steel & CCB


RSe 10
19x9 +40
19x9 +45
19x8.5 +45
19x8 +45 REAR ONLY
18x8.5 +45 with 235 or 245 tires (center mount outer balance weight)
18x9 +40 with 245 or 255 tires (narrow)
18x9 +45 with 255 or 265 tires
18x8 +45 REAR ONLY
Above clears steel & CCB


RSe 52
18x9 +45
18x9 +40
245/40 square or
265/35 Front & 245/40 Rear
Above clears steel & CCB


[/B]

Ray’s



G025
19x8.5 +45 (face-1)
19x8.5 +35 (face-2)


G25
19X8.5 +38 and +45 (+38 may need 3mm spacer in NA & ROW vehicle)
18x9 +45 (member confirmed post #536)




ZE40
19X8.5 +44


TE37 ULTRA
19X8.5 +38

TE37 Saga S Plus
18x9.5 +45 redrill to 5x112


G27 Progressive Model
19x8.5 +38 Square
19x9 +48 Square or use with above for front stagger





Gram Lights 57CR
19x8.5 +35
Deep center
245/35-19



VERSUS VV21S
18x8 +44 face 1
18x9.5 +38 face 2 (aggressive fitment)
19x8.5 +34 face 1


WEDSPORT


TC105X
18x8.5 +43
16.3 pounds
245/40-18 or 255/35-18
Also good with CCB




HARTMANN






FF-070-CG
19X9 +40
245/35-19



FF-003-CG
19x8.5 +38 w/ 235/35 or 245/35
19x9 + 40 w/ 245/35



HRS6-091-MA
19X8.5 +38 W/ 235 OR 245 TIRES



HRS6-204-GS
19X8.5 +38 W/ 235 OR 245 TIRES



HRS6-204-MA
19X8.5 +38 W/ 235 OR 245 TIRES



HRS4-252-GS
20X9 +40 W/235 OR 245 TIRES



HLP-410-GS
19X8.5 +38 W/ 235 OR 245 TIRES

[Paul@SupremePower]

Manufacturer Confirmed Fitment Without Spacers CONTINUED



HARTMANN Continued



HR8-GA
19X8 +35 W/ 235 OR 245 TIRES



HR8-GS
19X8.5 +38 W/ 235 OR 245 TIRES
19X8.5 +47 W/ 235, 245 OR 255 TIRES




ISWEEP

Flat Racing Graphite:




Gloss Racing Graphite w/ machined ring:



18x8 +45 rear only
18x8.5 +45 square or staggered
18x9.0 +45 square or staggered
-clears steel and CCB





AVANT GARDE



M510, M540, M580, M590, M610, M615, M621, M632
19x8.5 +32
235/35 Or narrow brand 245/35 max



M652
19x8.5 +32
235/35 Or narrow brand 245/35 max



M520R
19x8.5 +32
235/35 Or narrow brand 245/35 max




ADVAN



Advan RS-DF
19x8.5 +45



Advan RGIII
19x8.5 +45



Advan GT
19x8.5 +42
18x9 +45 - member confirmed



Advan RZII
19x8.5 +45



Advan RSII
19x8.5 +42



AVS Model F50
19x8.5 +42




OZ RACING





SUPER LM
19X8.5 +44
GOOD WITH CCB ALSO


HYPER GT
19X8 +35
235/35 max
GOOD WITH CCB ALSO



ULTRA HLT
19X8 +35
235/35 max
19X8.5 +32
235/35 Or narrow brand 245/35 max
19X8.5 +38
245/35
19X8.5 +47




SEBRING
19x8.5 +32
235/35 Or narrow brand 245/35 max


HRE



FF10
19x9.5 +45
255/30
Good steel and CCB



FF11
19x9.5 +45
255/30
Good steel and CCB



FF01
19x9.5 +45
255/30



FF04
19X9.5 +45
255/30



FF15
19x9.5 +45
255/30


ABT


GR20
20x8.5+45



ER-C19
19x8.5 +35
245/35 max



TARGA


TG3
19x8.5 +45
20x9 +42



TG2
19x8.5 +45





ROTIFORM:


BUC
19x8.5 +35
245/35-19



SIX
19x8.5 +35
245/35-19



OZR
20x9 +38
245/30-20


VOSSEN




HF-1
19x8.5 +38
245/35 max
Steel brakes only



HF-2
19x8.5 +38
245/35 max
Steel brakes only



HF-3
19x8.5 +38
245/35 max
Clears Steel & CCB




CV10
19x8.5 +38
245/35 max
Steel brakes only

[Paul@SupremePower]

Manufacturer Confirmed Fitment With Spacers (Unless otherwise noted):

VORSTEINER

[B][SIZE=3]

VFF 101
19X8.5 +45
8mm Spacers
245/35 max


VFF 103
19x8.5 +45
8mm Spacers
245/35 max



VFF 105
19x8.5 +45
8mm spacers
245/35 max


VOLK


TE37 ULTRA
19X8.5 +45
3mm Spacer

TE37 SAGA
18x9 +50 5x112
5mm spacer



G025
19x9 +50 (face-2)
3mm-5mm spacer
19x9.5 +44 (face-3)
3mm-5mm spacer



HARTMANN


HRS7-163-MA
19X8.5 +38 W/ 235 OR 245 TIRES
3mm Spacer



HTT-256-MA
19X8.5 +38 W/ 235 OR 245 TIRES
3mm Spacer
20X9 +40 W/ 235 TIRES ONLY
3mm Spacer



HLP-410-GS
19X8.5 +47 W/ 235, 245 OR 255 TIRES
3mm Spacer




CUSTOM FITMENTS

These are just some examples of custom style and specs that will work. Many others are possible so email me if you want a specific custom style and spec combo. In the interest of saving space in these posts I will link to custom fitment in lieu of pics below unless I have a specific RS3 custom wheels possibilities to show or that have been done.

FORGELINE


VX1
Various diameters, widths and offsets



BC FORGED



HCS21
Various diameters, widths and offsets


BC FORGED MONOBLOCK RS3 CONFIRMED FIT LINES (offset varies)





BC FORGED MODULAR RS3 CONFIRMED FIT LINES (offset varies)





FJ SERIES RS3 STEEL BRAKES FITMENT AVAILABLE IN:

19x9
19x9.5
+40 to +45
30mm to 50mm lip
Workable spec configuration depends on square or staggered offset


VOSSEN


VPS-315T
19" Custom offsets



ROTOFORM

Forged lineup:

http://www.rotiform.com/forged-c-4197.htm


SIGNATURE WHEEL

Full collection:

https://www.signaturewheel.com/products



MEMBER CONFIRMED FITMENTS


R8
19X8.5 +42
No Spacers
Thanks to Steve B. from the FB S3/RS3 Owners Group for pic



S4 Peelers
19x8.5 +43
No spacers
255/35/19 Blizzak LM-32
Thanks to Edward L. From the FB S3/RS3 Owners Group for pic



HRE


FF01
19x8.5 +47
8mm Spacer
(member confirmed)


Enkei


RS05RR
18x8.5 +45
10mm spacer
(Member confirmed. Thanks to kevinlee709)



PF01
18x9 +35 (agressive fitment)
265/35 F and 245/40 R
(Member confirmed. Thanks to V8Bait post #1106)

[QShip18]

Thank You Sir!

Love the Neuspeed RSe102 but not sure what offset to get. Planning on running 255/30/19 front and rear.

[iceman302]

I'm running the Rse14 19x 9 +40 for winter. Just a little bit of poke, perfect IMO.

The RSe 102 in 19" +40 should fit exactly the same.

This is an awesome thread! What size tires are you running on your 19x9, +40? I’d prefer a flush fitment with zero poke. Any pics down the side?

Thanks in advance.

[Paul@SupremePower]

This is an awesome thread! What size tires are you running on your 19x9, +40? I’d prefer a flush fitment with zero poke. Any pics down the side?

Thanks in advance.

🤙🤙🤙

245/35 for me.

No good pics yet. Unfortunately it’s been at the dealer since early December, right after I got them on.

[iceman302]

🤙🤙🤙

245/35 for me.

No good pics yet. Unfortunately it’s been at the dealer since early December, right after I got them on.

Ouch. I hope whatever the issue is, that it gets sorted out soon.

[Paul@SupremePower]

Ouch. I hope whatever the issue is, that it gets sorted out soon.

Me too. It’s the widespread NA RS3 software/hpfp/idle limp mode thing.

[Paul@SupremePower]

Post#1 updated with Volk.

[QShip18]

🤙🤙🤙

245/35 for me.

No good pics yet. Unfortunately it’s been at the dealer since early December, right after I got them on.

I was going to run 255/30/19 front and rear, do you think they would stick out to far based on what you know from your set up?

[Paul@SupremePower]

I was going to run 255/30/19 front and rear, do you think they would stick out to far based on what you know from your set up?

Well Neuspeed recommends 235/35 or 245/35 with RSe102 in 19x9 +40 and calls 245/35 an aggressive fitment for the car.

[PowerStroke]

Like the look of the Neuspeed RSe 52 for an 18" setup. Strangely, the Neuspeed website does not list this wheel as compatible with the 2018 rs3 sedan. How do you know it fits?

[Paul@SupremePower]

Like the look of the Neuspeed RSe 52 for an 18" setup. Strangely, the Neuspeed website does not list this wheel as compatible with the 2018 rs3 sedan. How do you know it fits?

Directly from my guy @ Neuspeed:

“RS3 fitments:

- All designs in 19x8.5 and 19x9.0
- 18x8.5 and 9.0 +40/45 RSe10
- 18x9.0 +40 RSe52

These will fit WITHOUT any spacers, straight bolt on. The 9.0” wheels will be supplied with 66.5-57.1 hub centric rings.”

Maybe the application function on their site is not updated to reflect it?

[Paul@SupremePower]

Neuspeed wheels usually have a ton of caliper clearance. Most are designed for aftermarket BBK.

[PowerStroke]

Directly from my guy @ Neuspeed:

“RS3 fitments:

- All designs in 19x8.5 and 19x9.0
- 18x8.5 and 9.0 +40/45 RSe10
- 18x9.0 +40 RSe52

These will fit WITHOUT any spacers, straight bolt on. The 9.0” wheels will be supplied with 66.5-57.1 hub centric rings.”

Maybe the application function on their site is not updated to reflect it?

Very helpful, thanks!

[Paul@SupremePower]

Very helpful, thanks!

No prob.

Here’s the RSe14 19x9 +40 over the brakes showing barrel clearance. I can’t find the pic showing the spoke clearance but it was a full inch at the closest caliper point.

[QShip18]

Well Neuspeed recommends 235/35 or 245/35 with RSe102 in 19x9 +40 and calls 245/35 an aggressive fitment for the car.

Well that does it then, 245/35/19 is what I’ll use. At least with this size I can run all season tires. I’m assuming this should be flush with the fender.

[Paul@SupremePower]

Well that does it then, 245/35/19 is what I’ll use. At least with this size I can run all season tires. I’m assuming this should be flush with the fender.

RSe102 is also available in 19x8.5.

Shoot me an email if your concerned about poke and we’ll help you hash it out.

[PowerStroke]

No prob.

Here’s the RSe14 19x9 +40 over the brakes showing barrel clearance. I can’t find the pic showing the spoke clearance but it was a full inch at the closest caliper point.

Thanks for that. super helpful! do i need different wheel width wheels for front and back if i’m gonna use these for a winter setup?

[Paul@SupremePower]

Thanks for that. super helpful! do i need different wheel width wheels for front and back if i’m gonna use these for a winter setup?

You don’t need to. In fact I don’t see any reason to front stagger in a winter set up at all.

[Paul@SupremePower]

Added

BBS CIR 2103
19x8.5 +45

[crazytex21]

Well that does it then, 245/35/19 is what I’ll use. At least with this size I can run all season tires. I’m assuming this should be flush with the fender.

I am running a square 255/30-19 on 19x9 et40 for my RS3. no issues.

[QShip18]

I am running a square 255/30-19 on 19x9 et40 for my RS3. no issues.

Any pictures? I’d love to see what this set up looks like.

[crazytex21]

Sent from my iPhone using Tapatalk

[QShip18]

Sent from my iPhone using Tapatalk

That does look good but I want my set up tucked in the fender a tad more. Based on this I’m thinking the 19X8.5 +40 with a 245/35/19 might be the better choice for me. Thanks for posting the picture!!!

[PowerStroke]

http://www.neuspeed.com/374/0/0/3007...ght-wheel.html

For this wheel, the color pictured on the white Audi is the gun metal?

[Paul@SupremePower]

http://www.neuspeed.com/374/0/0/3007...ght-wheel.html

For this wheel, the color pictured on the white Audi is the gun metal?

That looks like satin bronze. The rse14 above is gunmetal.

[Eric@SupremePower]

Glad you got this up Paul!

[Hugonzalez01]

What are lightest 18 & 19 wheel options that can run 255/30.


Sent from my iPhone using Tapatalk

[keninblaine]

Any reason you skipped the Hartmann wheels that fit?

[shivaswrath]

What are lightest 18 & 19 wheel options that can run 255/30.


Sent from my iPhone using Tapatalk

BBS FS at 19.8 lbs for a 19x8.5"....forged Alu.

[Paul@SupremePower]

Any reason you skipped the Hartmann wheels that fit?

Didn’t skip just waiting on complete info from manufacturers.

I’ll be adding different manufacturers lines as they are confirmed. Due to the tight tolerances involved here it seems several won’t confirm fitment until they get an RS3 in house to measure up. And I’m trying to be careful to post only sure bets per their recommendations.

[Paul@SupremePower]

BBS FS at 19.8 lbs for a 19x8.5"....forged Alu.

Most Neuspeeds in 18” to 19” are in the 20lb range too iirc.

FS are niiiiiice

[irablumberg]

Here is a link to my post regarding Neuspeed wheels in 19x9. I have been very pleased with these wheels even though they are a bit heavier than promised. Note since this post, I have checked my scale and it is accurate, so I believe that these wheels do in fact weigh 22 lbs.

http://www.audizine.com/forum/showth...19x9-45-photos

Cheers

[Paul@SupremePower]

Added

Hartmann fitments

without spacers

[Paul@SupremePower]

Added

Hartmann fitments

WITH spacers

[keninblaine]

Added

Hartmann fitments

WITH spacers

Thanks very much for putting this together in one thread. It should prove very useful for many folks, including me.

It is curious that there are numerous wheels (incl Hartman) that specify 235 or 245 tires on their 8.5" and 9" rims, but not 255 tires. Since the wheels mostly have lower offsets (such as 38) it is difficult to understand why the 255 tires would be an issue, since the tires are further out from the car than the 255 tires are with the factory 46mm offsets. Can anyone explain why this is?

Also, I'm considering the Neuspeed RSe 102 in Hyper Black but am not sure what it looks like. Appears to be like a black chrome finish. Curious if anyone has any Neuspeed wheels in that finish and if they could describe or provide photos of them.

[Konrad]

Thanks for posting this.

[Paul@SupremePower]

Thanks very much for putting this together in one thread. It should prove very useful for many folks, including me.

It is curious that there are numerous wheels (incl Hartman) that specify 235 or 245 tires on their 8.5" and 9" rims, but not 255 tires. Since the wheels mostly have lower offsets (such as 38) it is difficult to understand why the 255 tires would be an issue, since the tires are further out from the car than the 255 tires are with the factory 46mm offsets. Can anyone explain why this is?

Also, I'm considering the Neuspeed RSe 102 in Hyper Black but am not sure what it looks like. Appears to be like a black chrome finish. Curious if anyone has any Neuspeed wheels in that finish and if they could describe or provide photos of them.

My pleasure.

So those are manufacturer recommended tire sizes. Ideal configuration to use with the rim on this platform. Since that is kind of the theme here I chose to include the tire size if they provided it. Over time that may change on the manufacturer level and I’m sure it will on the functional level as people exercise trial and error.

Neuspeeds hyper black is my favorite finish they have. I’ll see what pics I have and post them.

- - - Updated - - -

Thanks for posting this.

🤙🤙🤙

[Paul@SupremePower]

I don't have anything handy mounted on audi's but heres Neuspeeds hyper black finish examples
