    B6 Passat rack to fit on B6/B7 A4/S4

    Guest-only advertisement. Register or Log In now!
    Hey guys doing my own DIY for the B6 passat VW rack to Fit on our cars

    I got my rack from genuinevwaudiparts.com Rack *here* P/N 3C0071126

    Tools needed
    - rack tool (comes with rack has allen and special socket for the rack bolts)
    - square
    - punch
    - hammer
    - scoring tool ( i used tungsten from my tig)
    - some sort of saw (hack saw should work fine)
    - flat heat screw driver
    - drill or drill press
    -measuring instrument (calipers, tape measure, ruler whatever you have!)

    optional
    - extra set of allen's

    I used the measurements that dackler posted PDF file here Thanks for those makes things a lot easier! they were dead on!


    Ok so first thing is first i always worked from the right side of the racks that way i could retain the factor stickers on the bottoms telling you which front and rear.

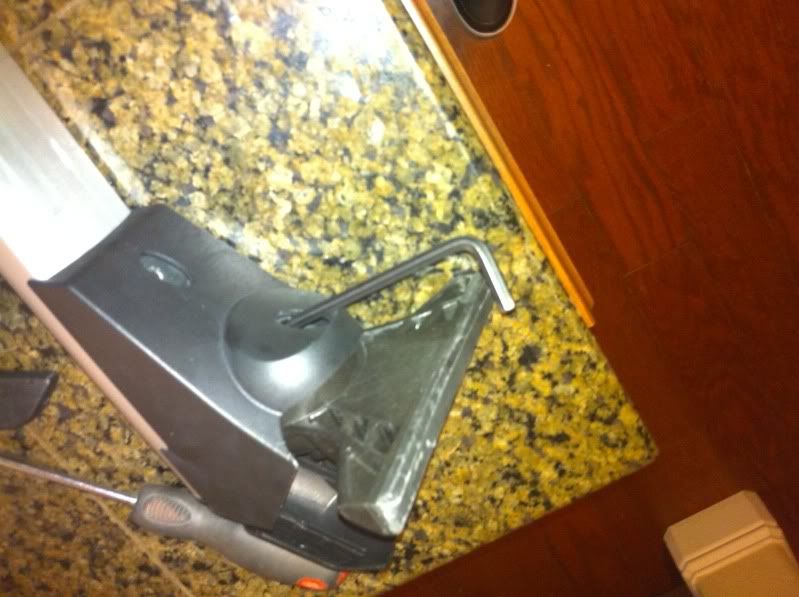

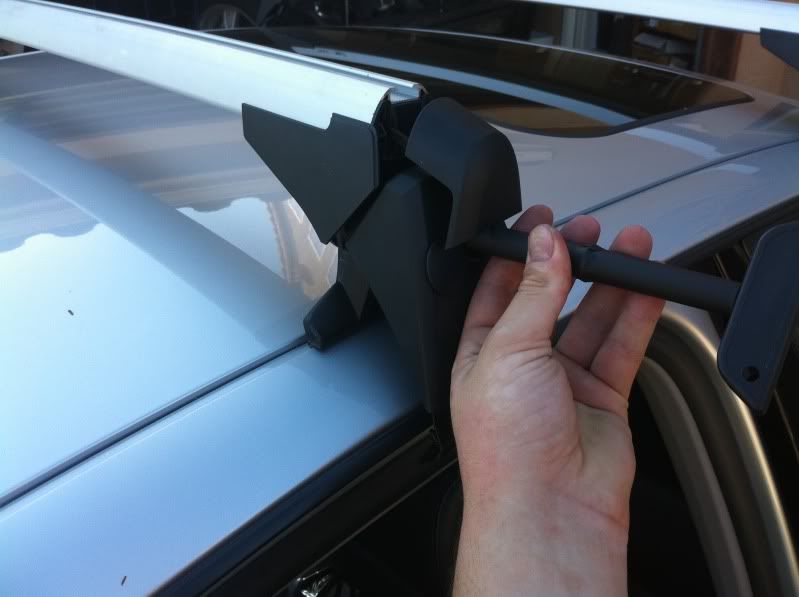

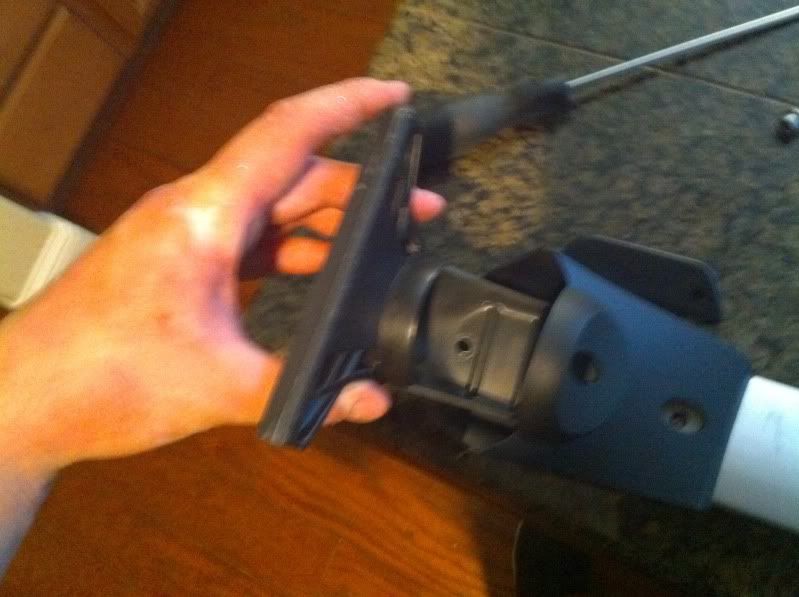

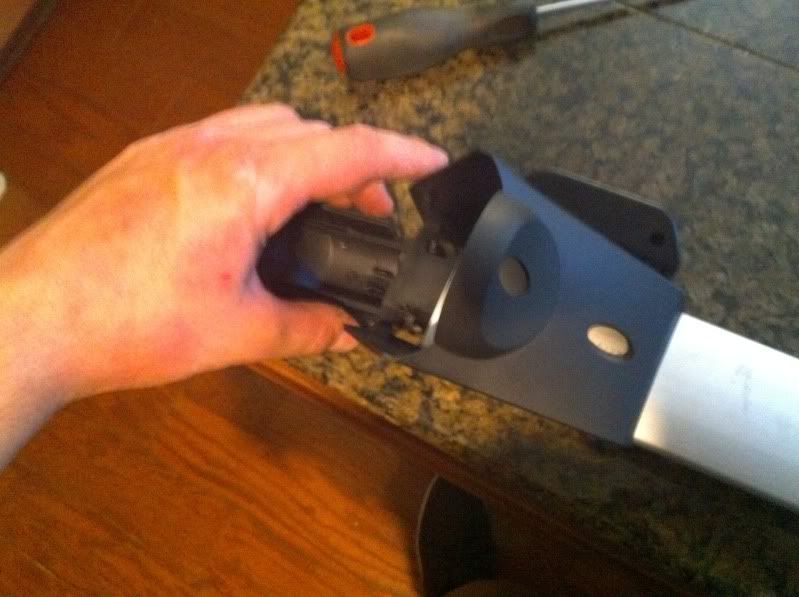

    1: Start by first taking off the side mounts that clamp inside of the doors using the tool supplied with the rack.

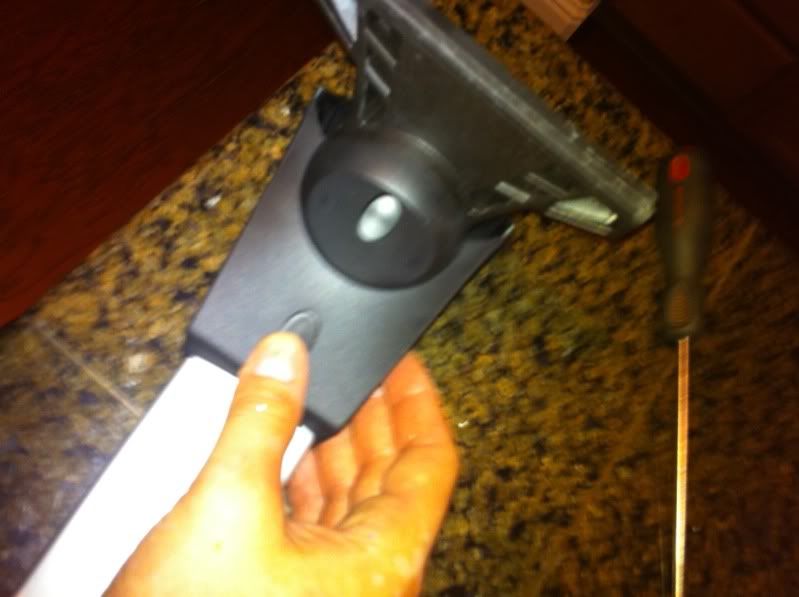

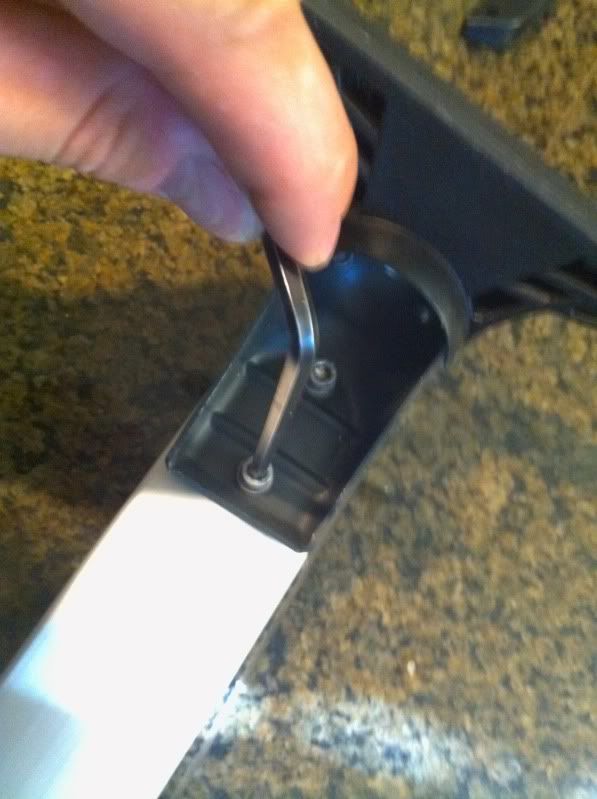

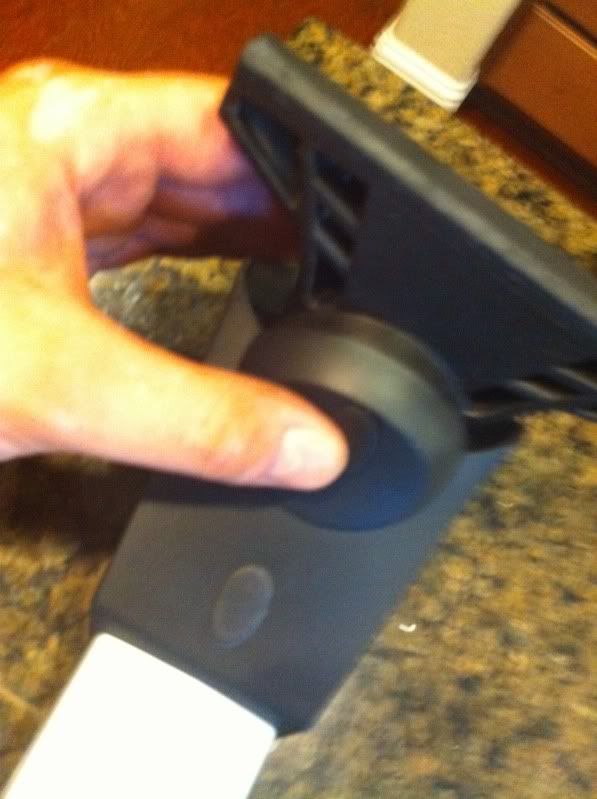

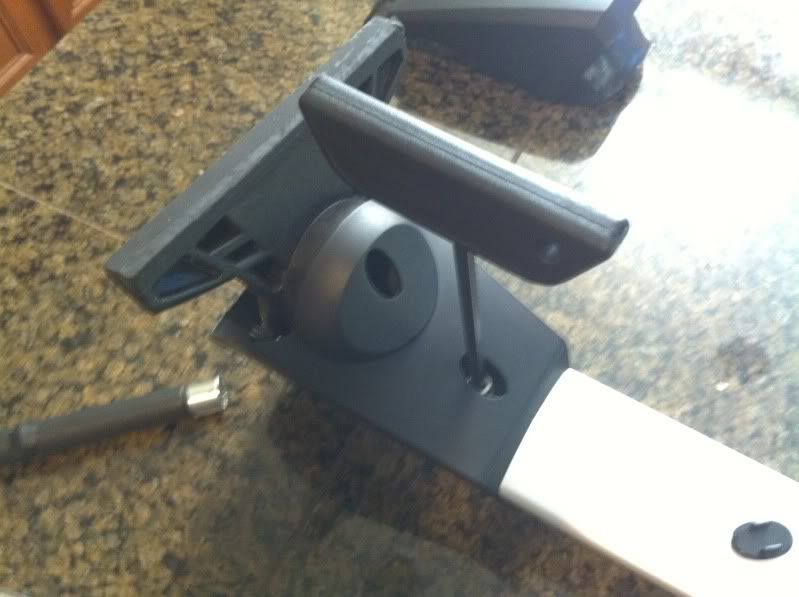

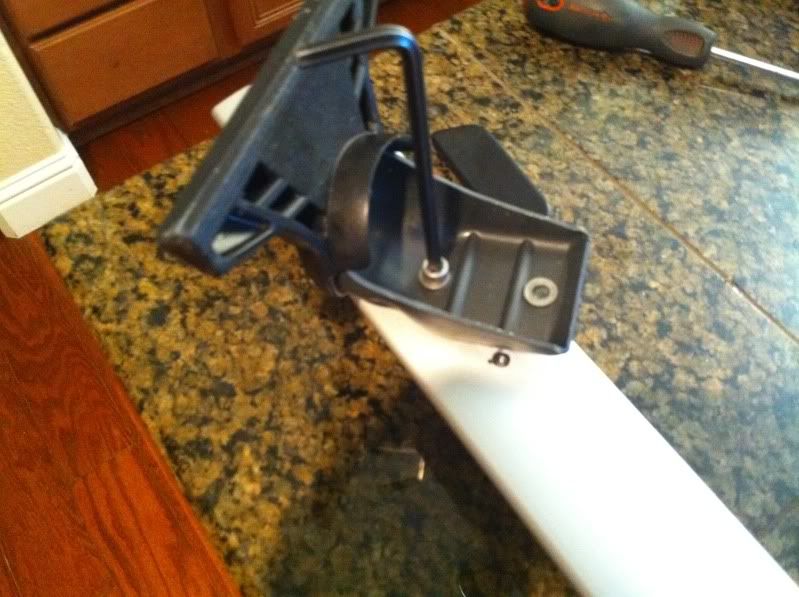

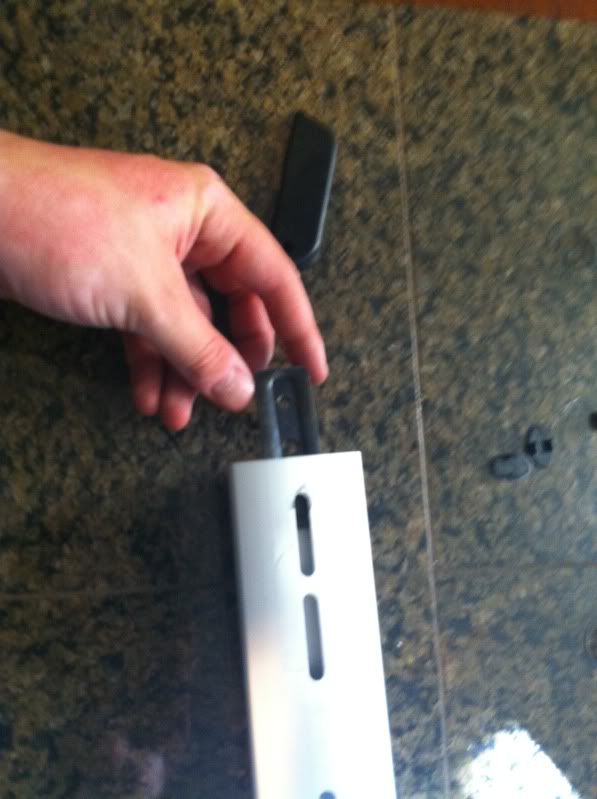

    2: Then remove the small plastic plugs that are hiding 2 (5MM) allen bolts remove both bolts.

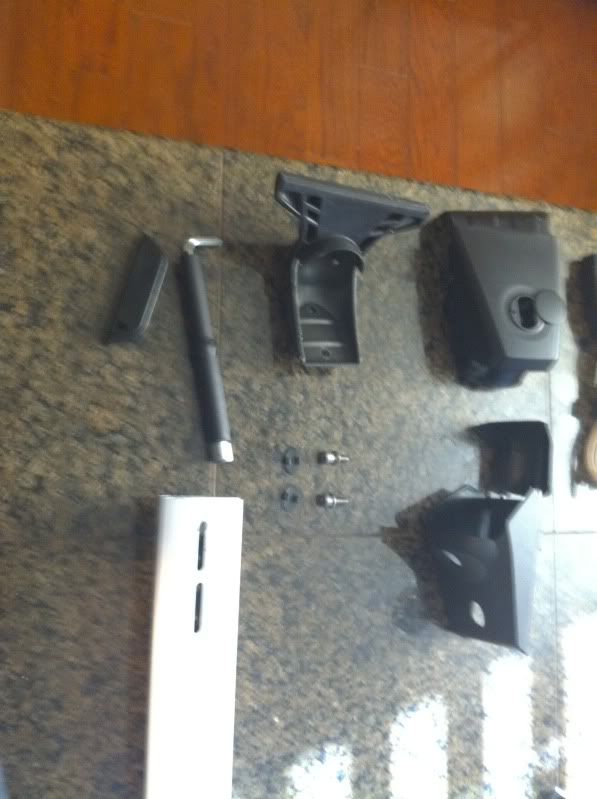

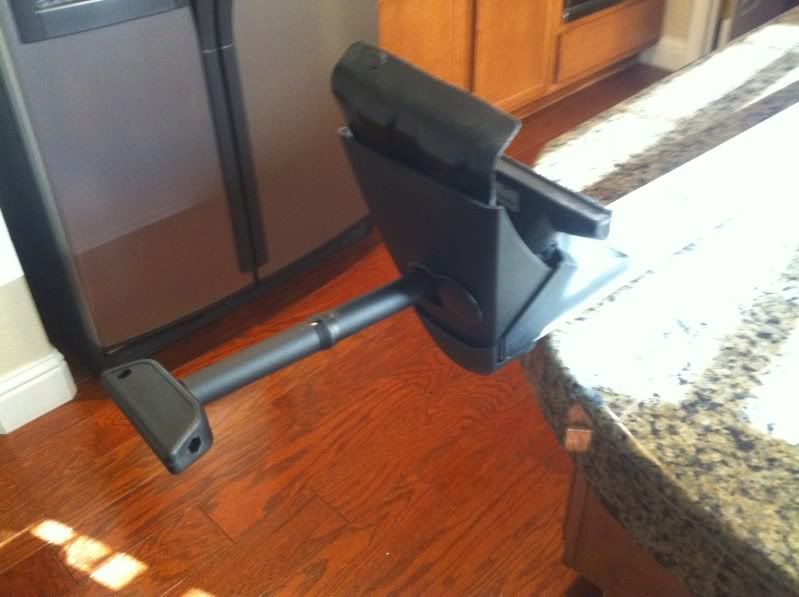

    3: Then you are able to remove the inner supporting foot and cover, then side out the steel sliding block. the side of the rack should be fully disassembled.




    4: after the rack is all disassembled on the right side then its time to start making some holes! i used dackler measurements they are listed above.


    now for the front rack the holes need to be moved forward 55.0mm rear rack needs to be moved inwards 88.0mm these steps can be used for both just makes sure you use the correct measurements on the correct rack.

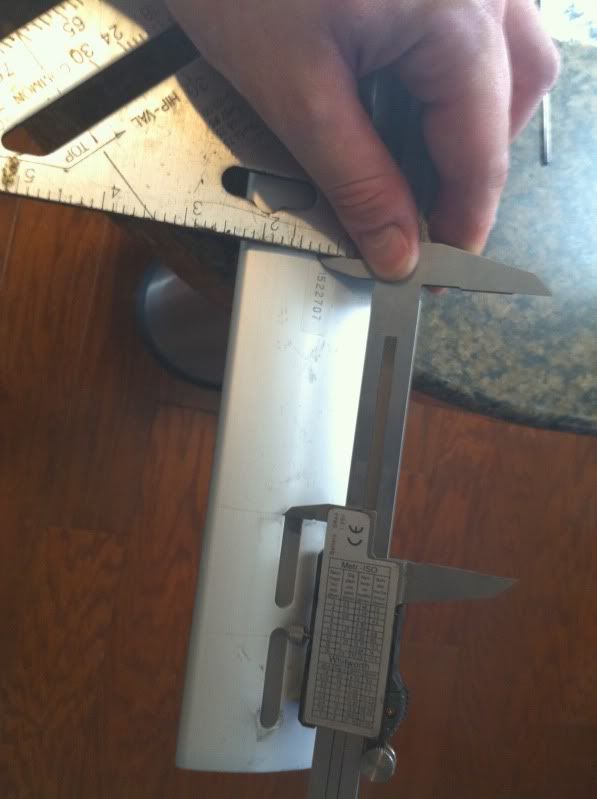

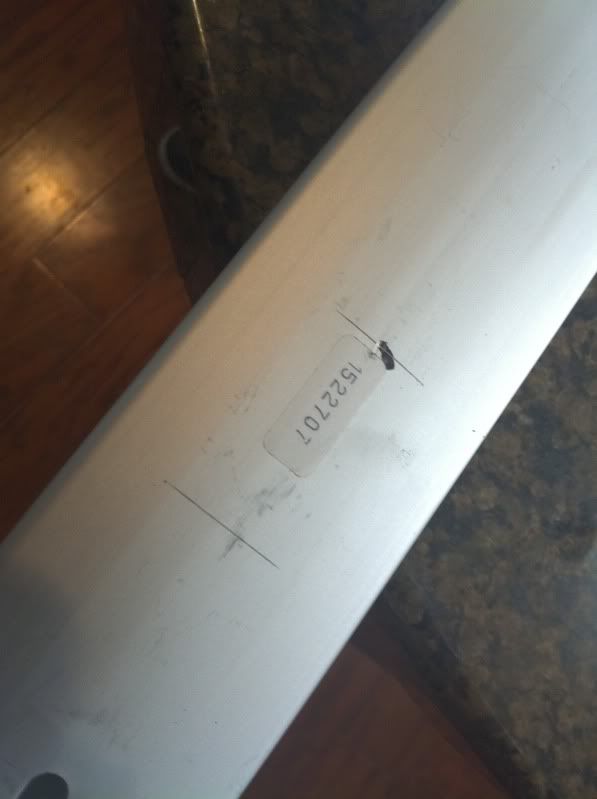

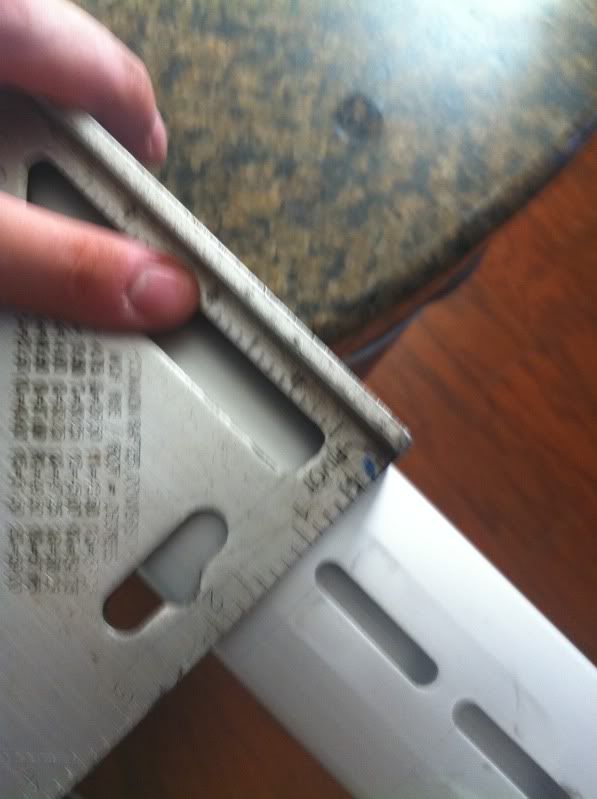

    Now what i did was i used my square and lined it up with the factory slotted hole and covered up the radius part (just so that the slotted hole no longer had and radius showing) with the square then scored it. then repeated the same from the next hole.

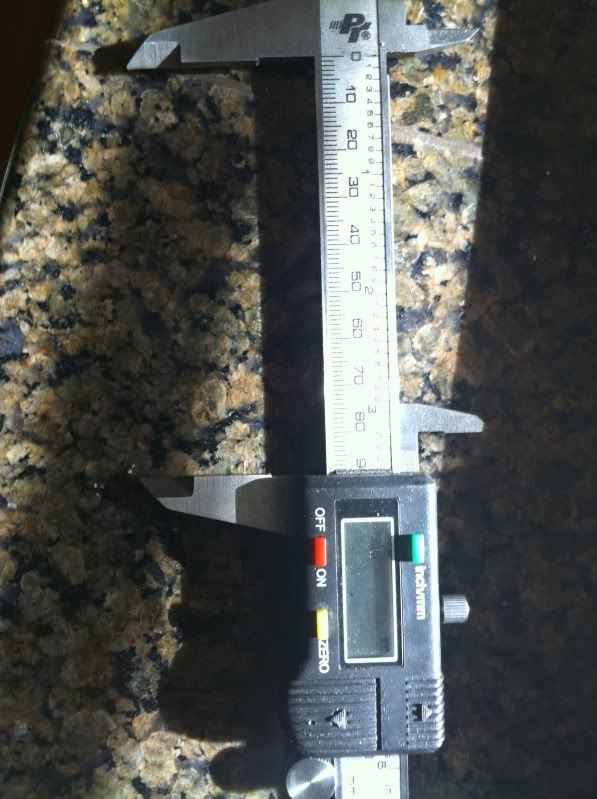

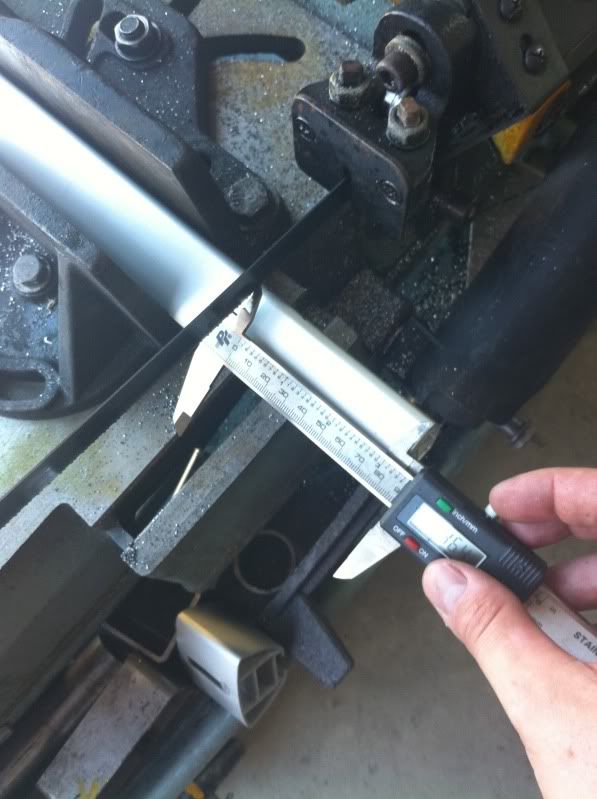

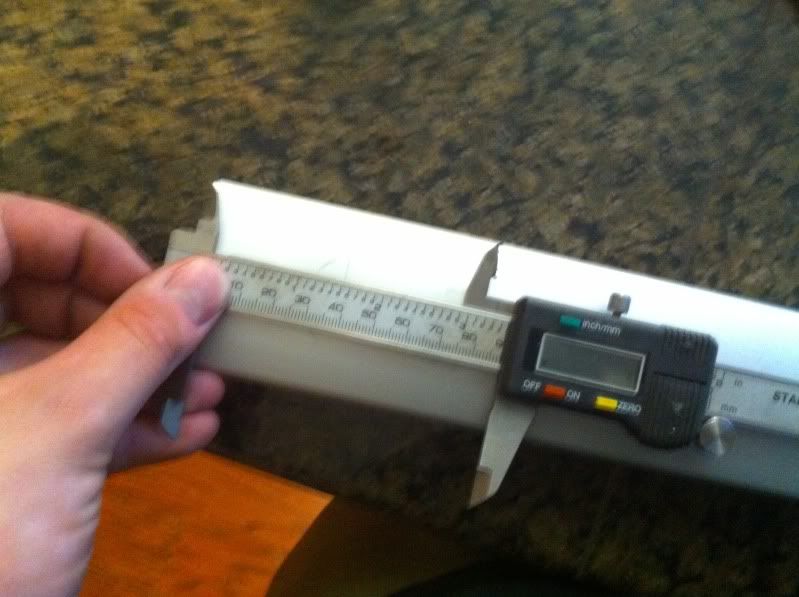

    5: Next i used my calipers and set them to my measurements i need (front 55.0mm)(rear 88.0mm) then i used my square and measured from my original line that i scored moved inward on the rack till i moved the correct distance then scored the rack then repeated the same step for the next hole.







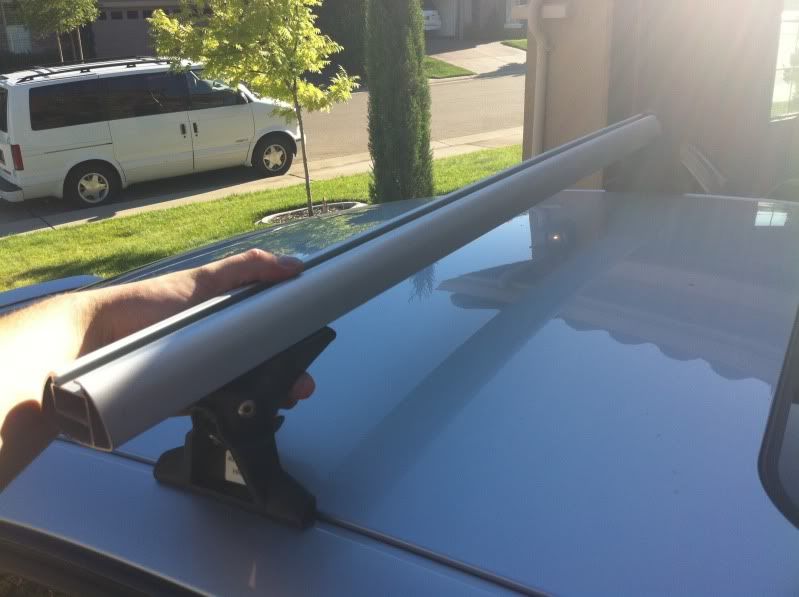

    6: now at this point you should almost be ready to drill some holes but before i did i went and test fit the rack on my car i liked up the rack with the holes in the door and seat the right side support foot under lining it up with the gutters where it sits on the car then used a marker to mark the front hole to make sure i am where i need to be with my measurements




    7: After you make sure you measurements are on target you need to find the center of the rack so you can use a punch to get you a nice punch to get you drill bit started the rack is 2.25" wide so the center would be 1/2 of that which is 1.125" using you square measure it out and score it on each spot where the new holes will be.
    Last edited by darkstar; 08-18-2010 at 11:32 AM.

  2. #2
    Veteran Member Three Rings darkstar's Avatar
    Join Date
    Dec 24 2004
    AZ Member #
    4600
    My Garage
    1998 silverado, 1986 c10
    Location
    Folsom, CA

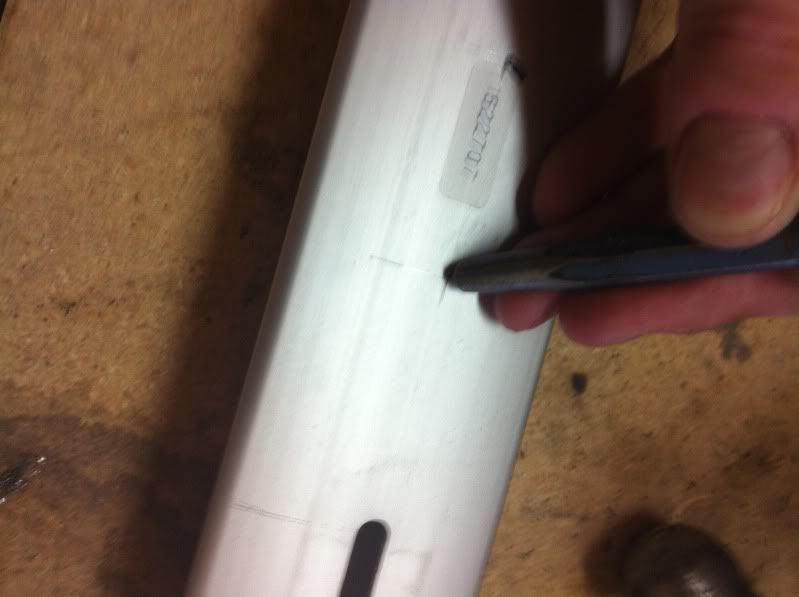

    8: Now using your punch line up your makes you made and punch a started spot for the drill.

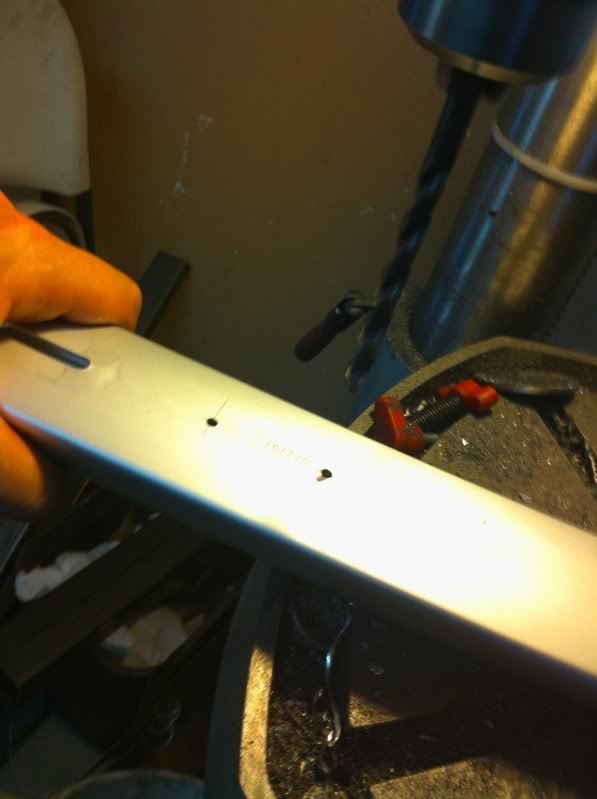

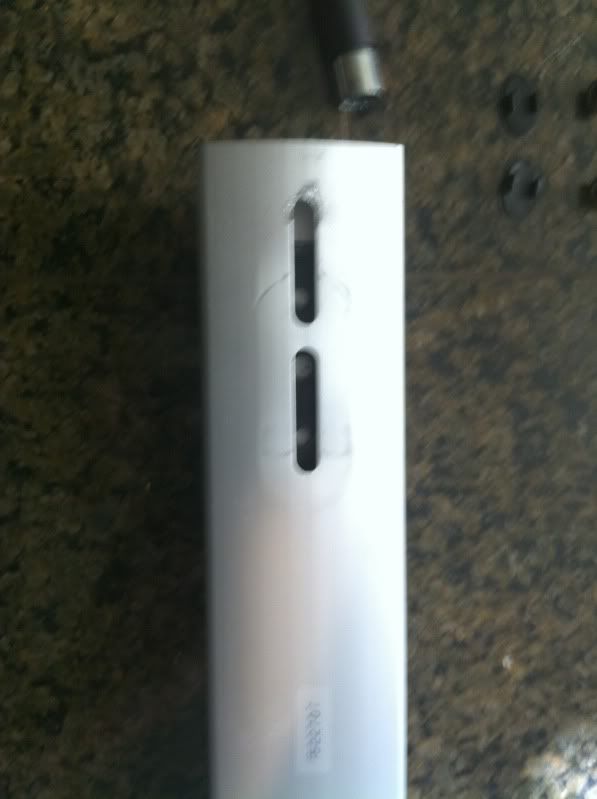

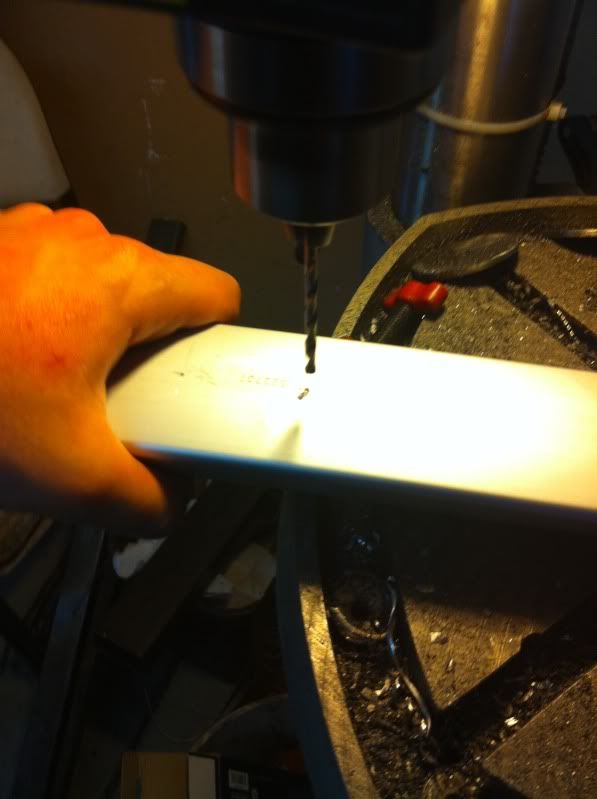

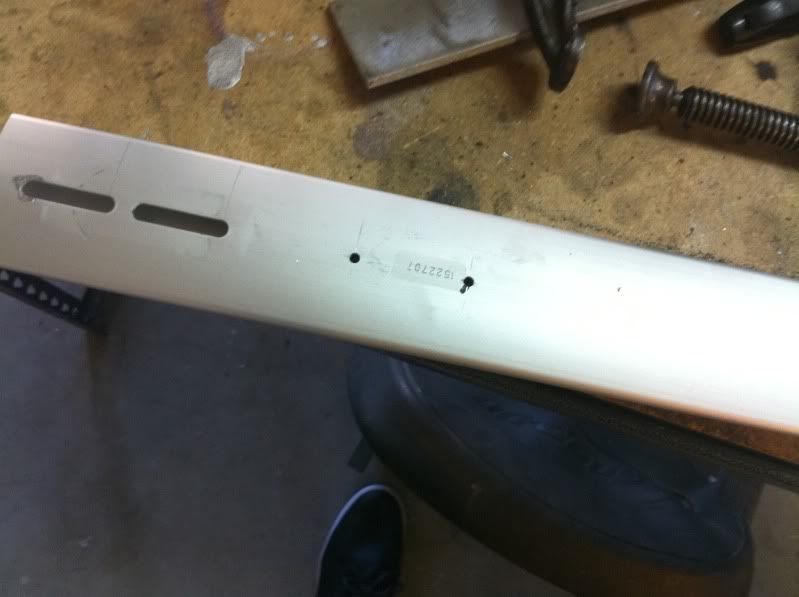

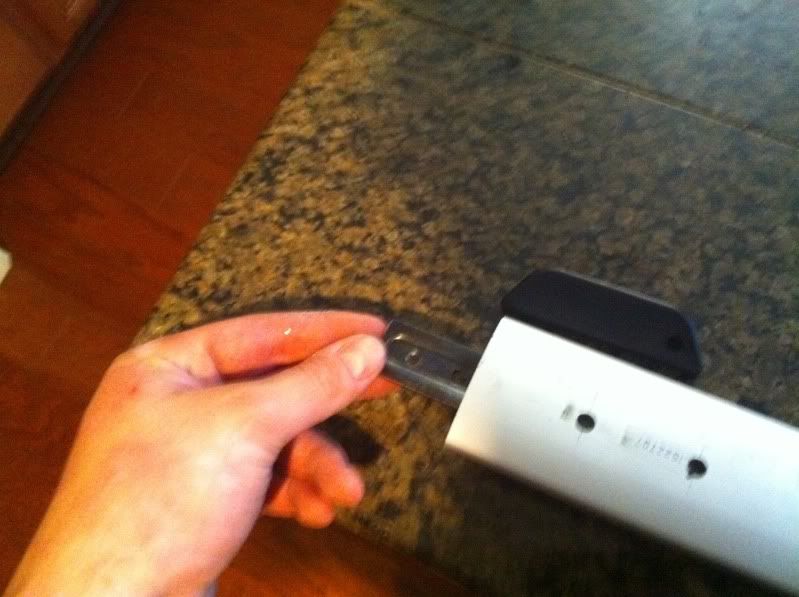

    9: Now its time to drill some holes! i started off with a small pilot bit like 1/16 then step up to a 1/4" bit








    10: now after i drilled them out i went ahead and went and test fitting again to make sure the holes were correct and i didn't have to slot them at all to get a good fitment. so slide the sliding block back in and using the 2 (5mm) allen bolts fit the support foot back on to the rack and make sure that you fit is good between the gutters.

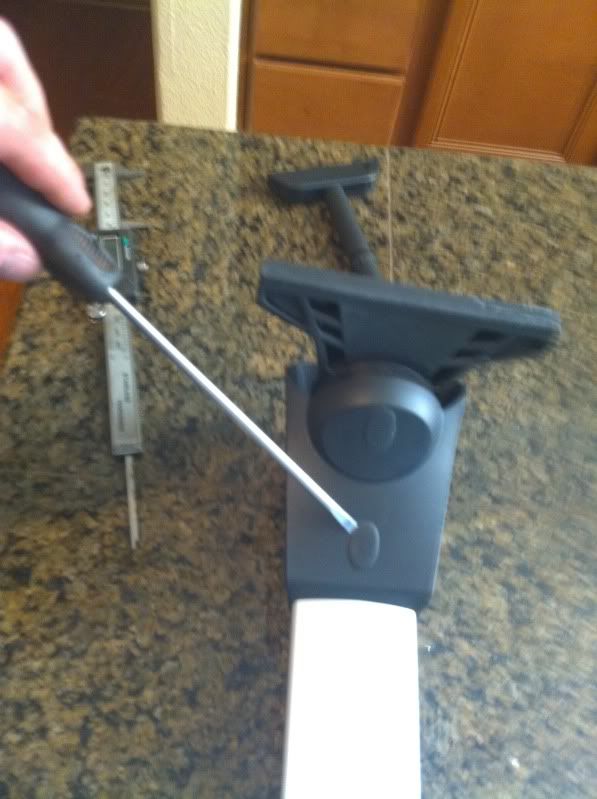

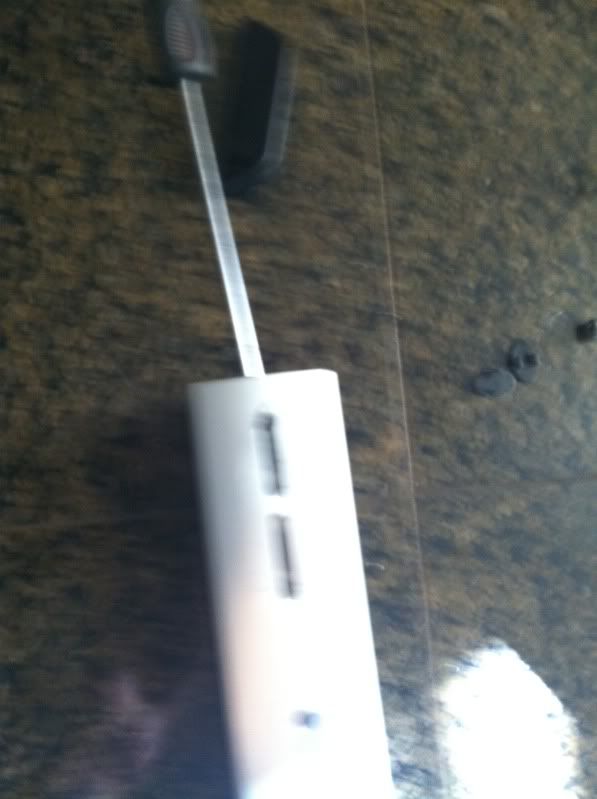

    *note*you may need to use a screw driver to get the sliding black in place

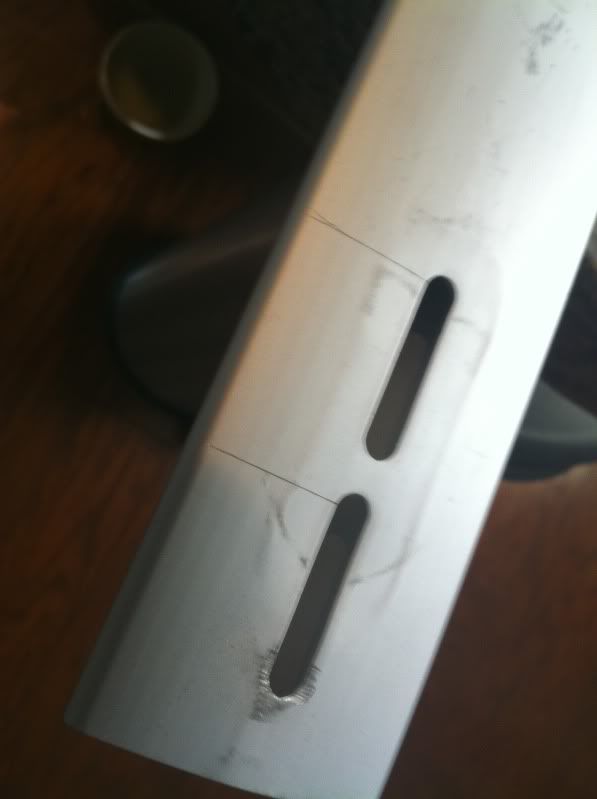

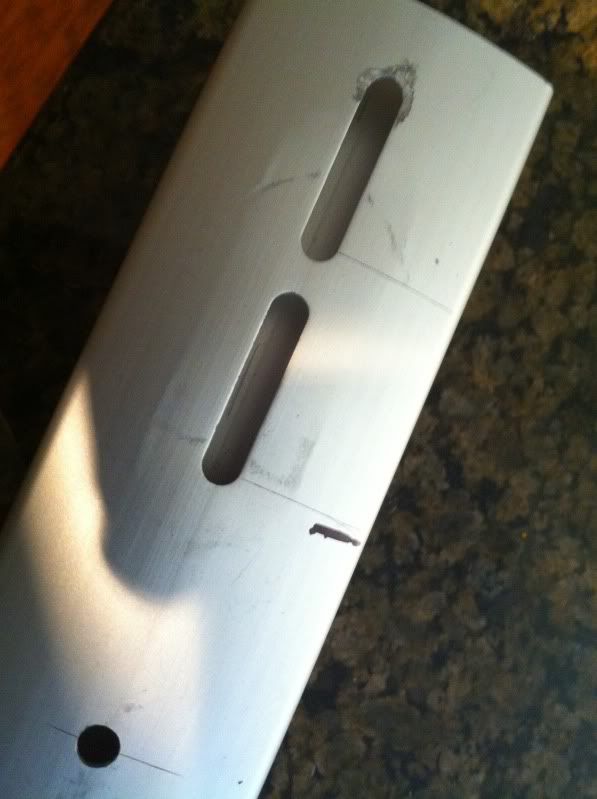

    **note if you do not have good fitment you may have to slot the holes with a dremel or die grinder to get the fit you need you can always try adjusting from the unmodified side.


    WE ARE GETTING CLOSE!

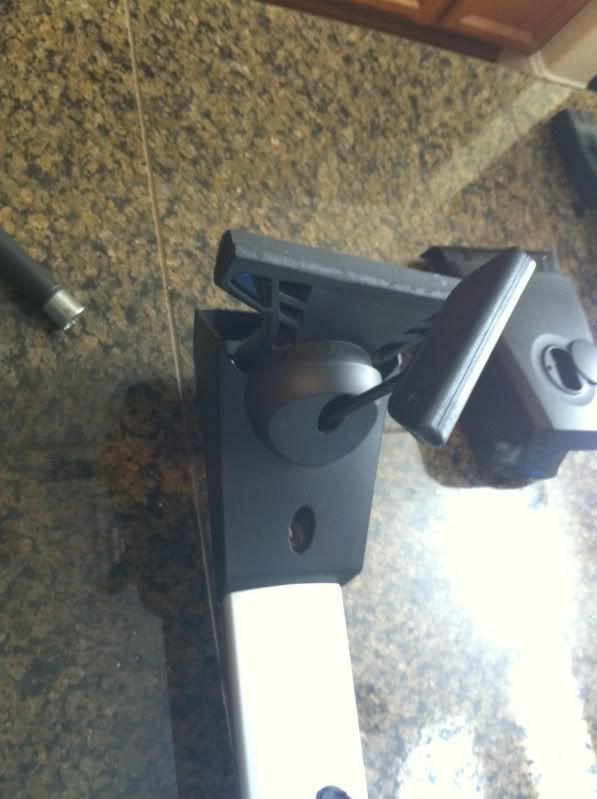

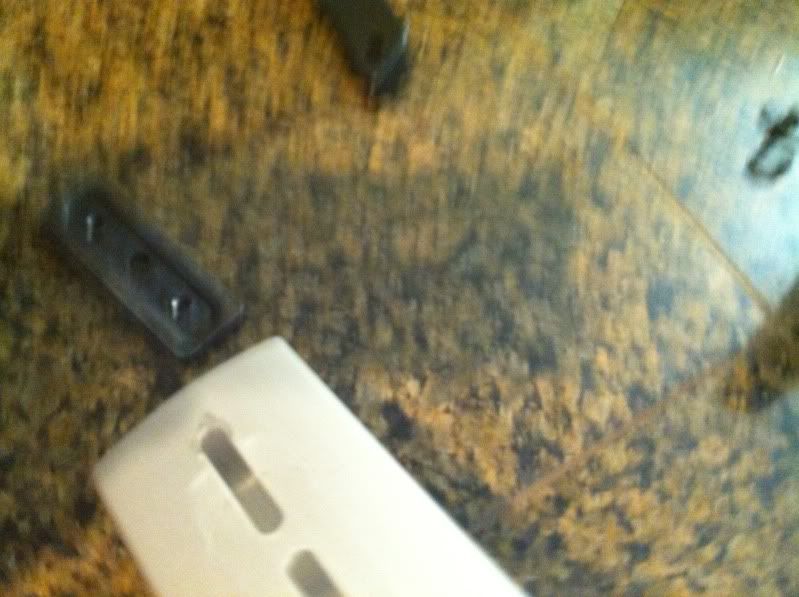

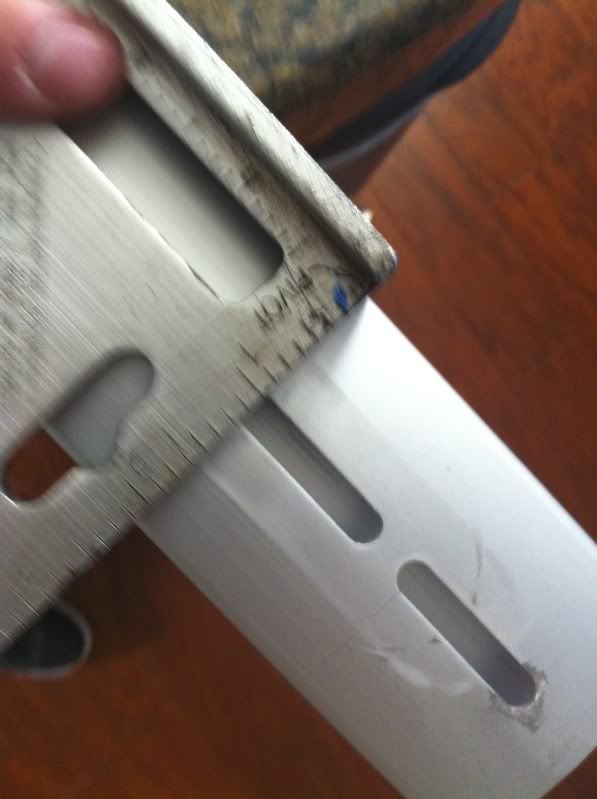

    11: Now take the support leg off and remove sliding block, then using the measuring device i used my caliper, measure from the end to the amount you moved the holes on the rack (front 55.0mm) (rear 88.00mm)

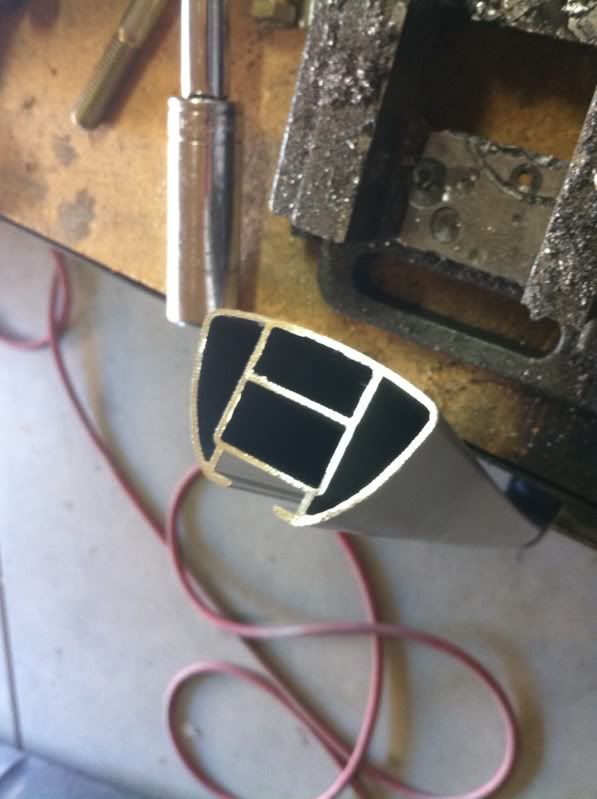

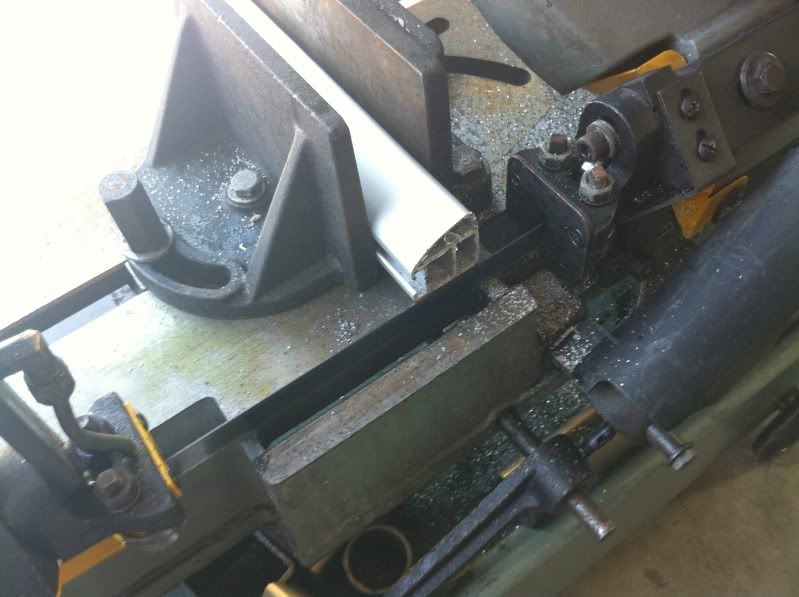

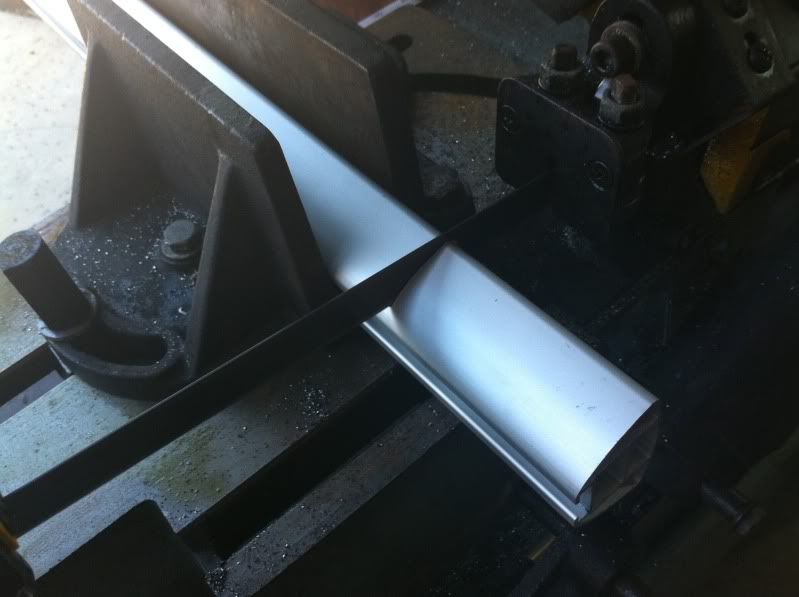

    12: Now we are ready to cut! i used a bandsaw you can use whatever you life or have access to. i clamped my piece very carefully and confirmed my amount i wanted to remove, then cut!

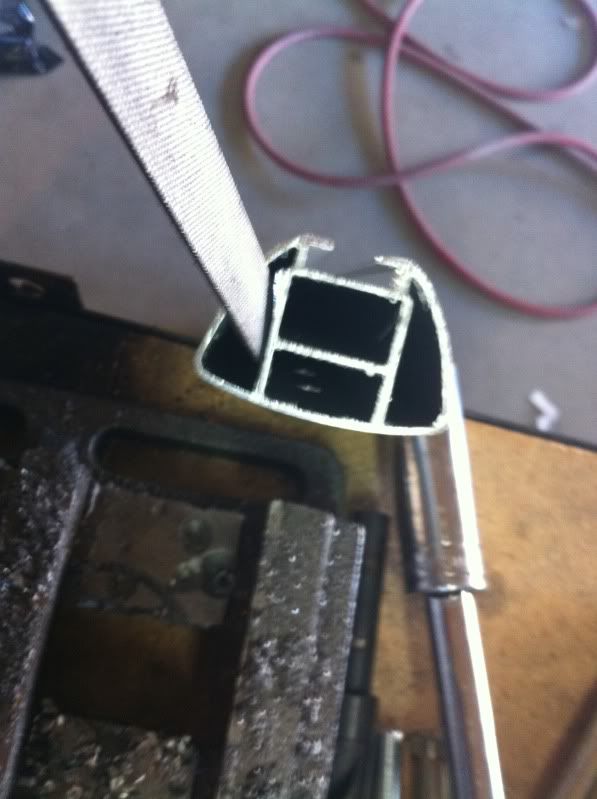

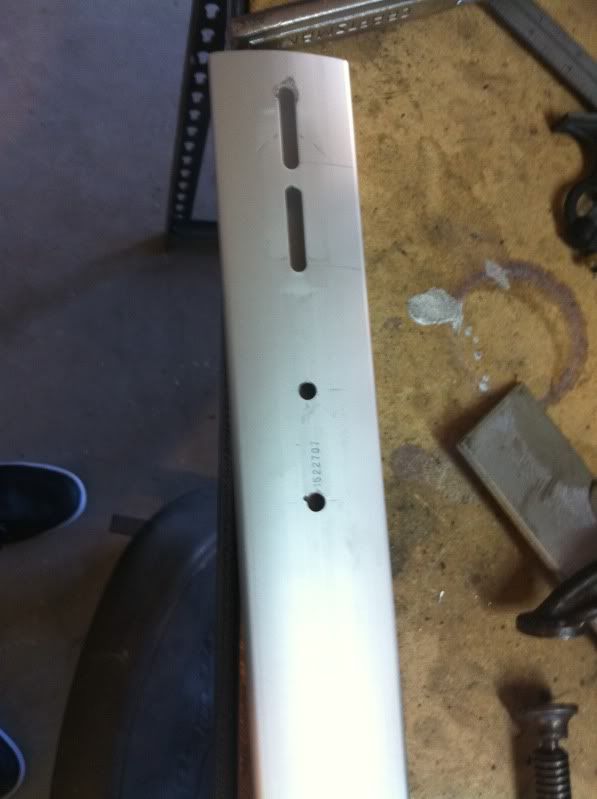

    13: after i cut my piece i went ahead and used a metal file and cleaned up my cut.




    14: Now it is time to start putting things back together! start with sliding in the slide block, then put on the support foot cover, then put on the support foot and secure with 2 (5mm) allen bolts.**note** it was easier to put the deep of the 2 bolts on the racks side, then install 2 small plugs to cover bolt holes, after that then put on outer tensioning clamp.














    **note make sure to leave the tensioning clamps pretty loose to help fitting the rack.

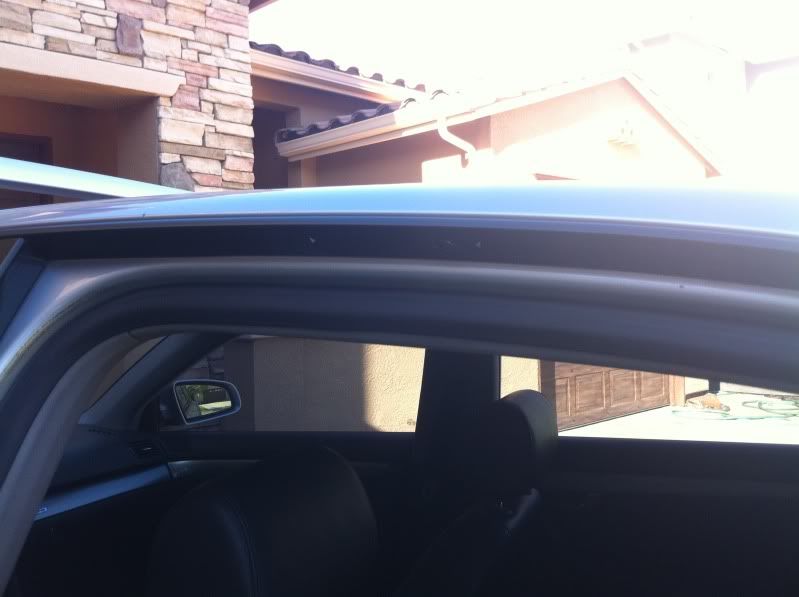

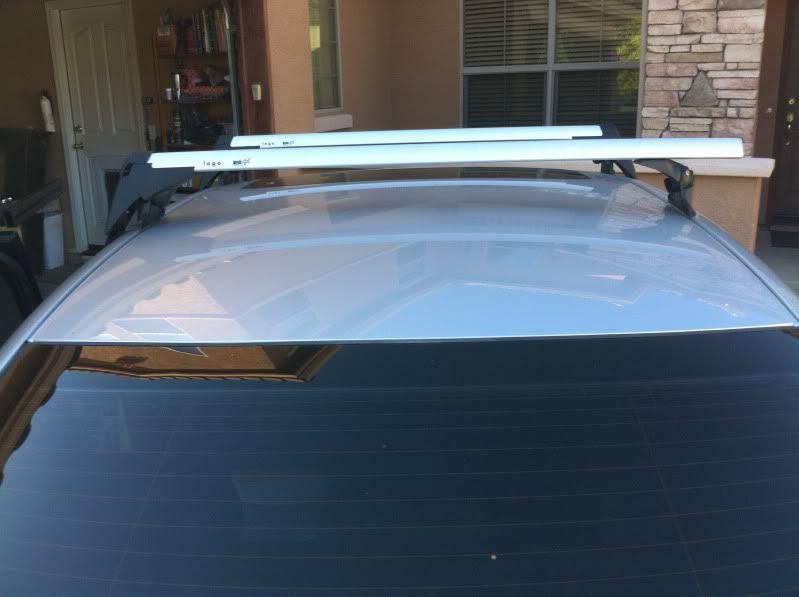

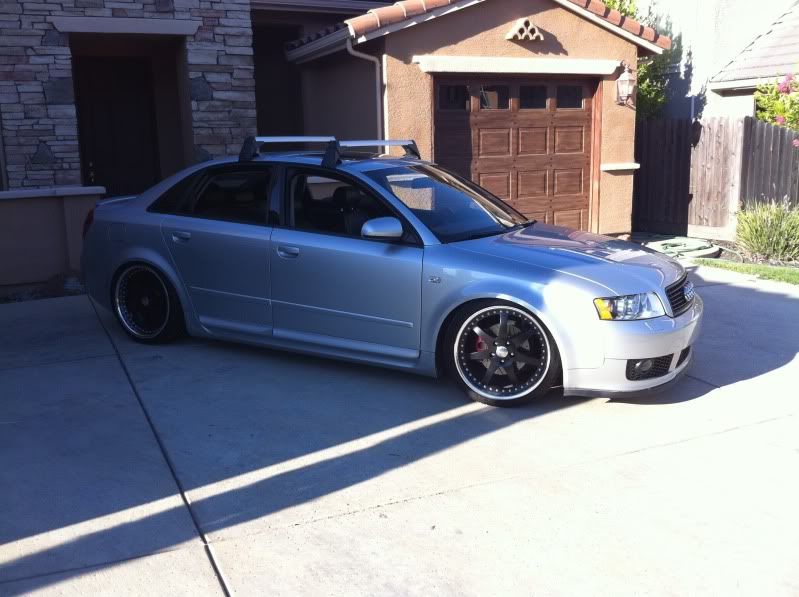

    15: installation! at last! ok so now open all 4 doors find the alignment marks inside the door jamb. Lining the correct front and rear backs on the car making sure you have the left on the driver side of the car. tighten down rack according to manufactures instructions.



  3. #3
    Veteran Member Three Rings darkstar's Avatar
    Join Date
    Dec 24 2004
    AZ Member #
    4600
    My Garage
    1998 silverado, 1986 c10
    Location
    Folsom, CA

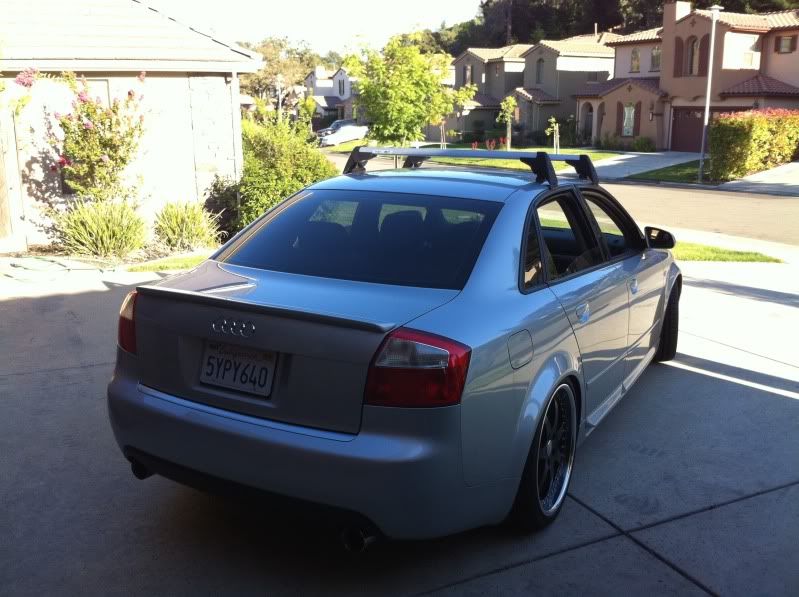

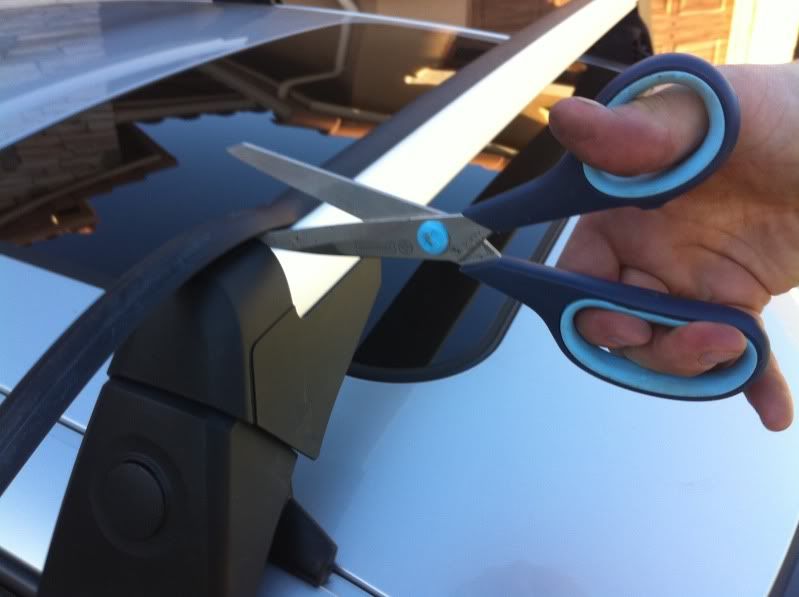

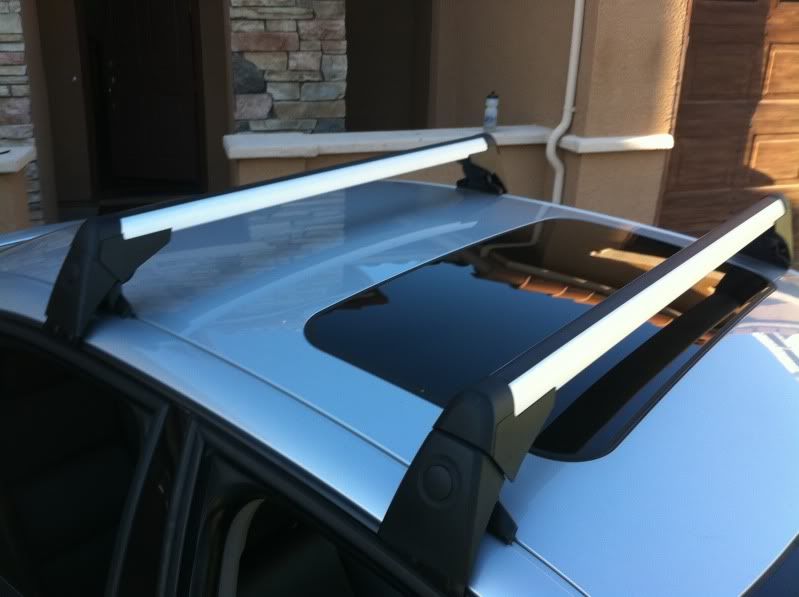

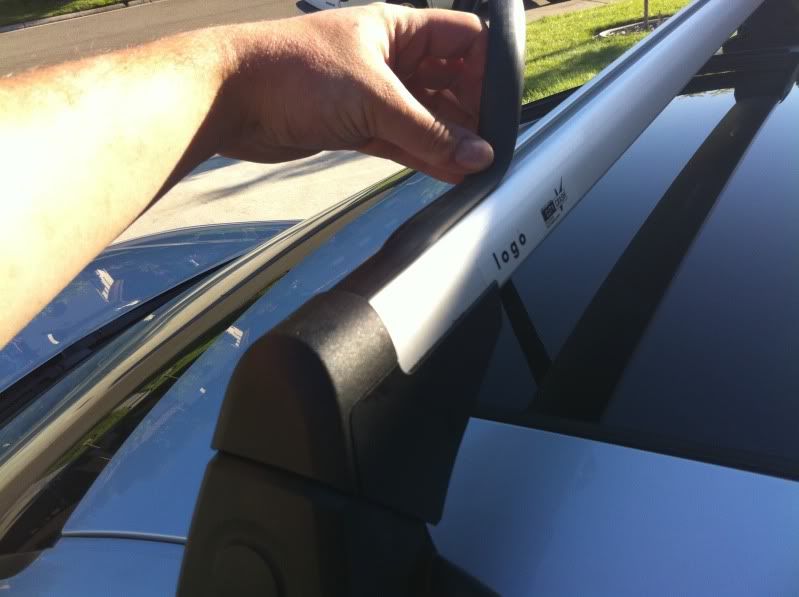

    16: stalling rubber strips with the rack installed and molded caps closed push down the rubber strips in the channel then cut when you get to the other side.






    Now enjoy your 56 dollar rack!!!!!!









    the end!
    Last edited by darkstar; 08-20-2010 at 10:05 AM.
